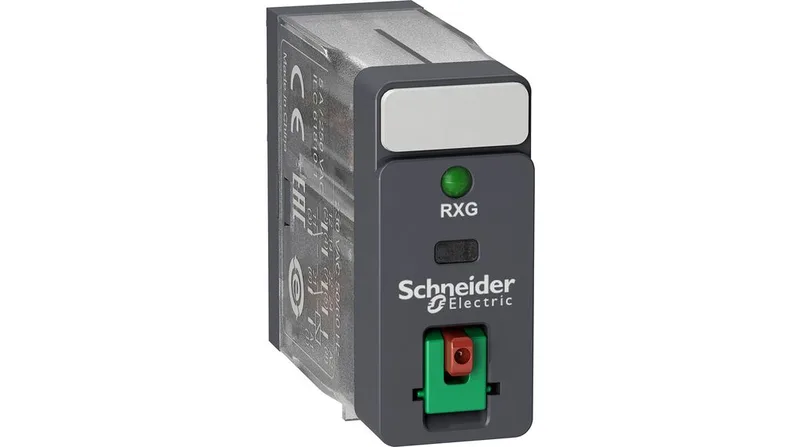

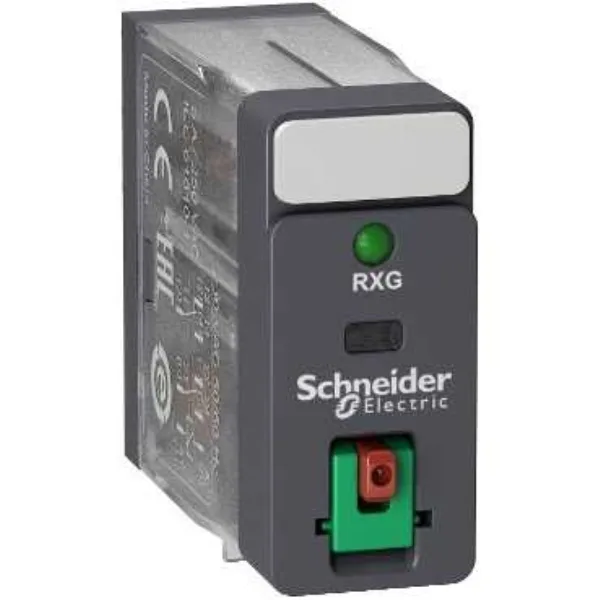

Schneider Electric RXG22P7
MPNRXG22P7
Active
Interface Plug-in Relay, 2W, 230VAC, 5A, with LED 2CO AC 230V 5A Flat Pin Terminal Zelio Relay
$7.35 – $13.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Interface relay |
| Series name | RXG series |
| Control type | Lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 250 V AC 30 V DC |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Coil voltage | 230 V AC |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection 6000 V between coil and contact with reinforced insulation 1500 V between terminals and case with basic insulation 4000 V between poles with basic insulation |
| Load current | 5 A 250 V AC |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to UL 5 A at 250 V (AC) conforming to IEC |
| [Ithe] conventional enclosed thermal current | 5 A -40...131 °F (-40...55 °C) |
| IP degree of protection | IP40 |
| Pollution degree | 2 |
| Relative humidity | 10...85 % |
| Vibration resistance | 3 gn +/- 0.75 mm 10...150 Hz)in operation 5 gn +/- 0.75 mm 10...150 Hz)not in operation |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Electrical durability | 100000 cycles NO resistive at 55 °C 100000 cycles NC resistive at 55 °C |
| Mechanical durability | 10000000 cycles |
| Standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| Category | US10CP221127 |
| Reset time | 20 ms |
| Status LED | With |
| Test levels | Level A group mounting |
| Shape of pin | Flat (faston type) |
| Operating rate | <= 18000 cycles/hour no-load |
| Operating time | 20 ms |
| Local signalling | Flag |
| Removable legend | With |
| Average resistance | 23500 Ohm at 73 °F (23 °C) +/- 15 % |
| Contact resistance | 100 mOhm |
| Device presentation | Complete product |
| Dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation 1300 V AC terminals and case with basic insulation |
| Protection category | RT I |
| Overvoltage category | III |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 1250 VA |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Electrical insulation class | Class F |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
