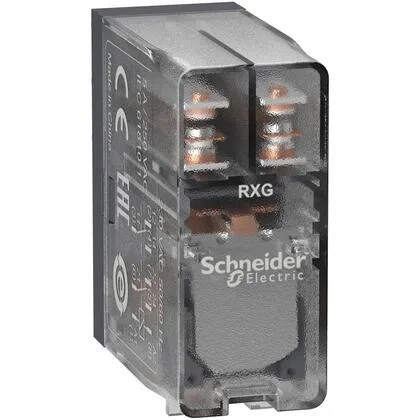

Schneider Electric RXG25F7
MPNRXG25F7
Obsolete
RELAY 2CO 5A@250VAC 120VAC COIL CLEAR|RELAY 2CO 5A@250VAC 120VAC COIL CLEAR
$5.14 – $7.49Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series name | Interface relay |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 250 V AC 30 V DC |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection 6000 V between coil and contact with reinforced insulation 1500 V between terminals and case with basic insulation |
| Load current | 5 A 250 V AC |
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL 10 A at 30 V (DC) conforming to IEC 10 A at 250 V (AC) conforming to UL 10 A at 250 V (AC) conforming to IEC |
| [Ithe] conventional enclosed thermal current | 5 A -40...131 °F (-40...55 °C) |
| IP degree of protection | IP40 |
All specifications
| Parameter | Value |
|---|---|
| Mounting position | Any position |
| Pollution degree | 2 |
| Relative humidity | 10...85 % |
| Vibration resistance | 3 gn +/- 0.75 mm 10...150 Hz)in operation 5 gn +/- 0.75 mm 10...150 Hz)not in operation |
| Colour of cover | Transparent |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Electrical durability | 100000 cycles NO at 55 °C 100000 cycles NC at 55 °C |
| Mechanical durability | 10000000 cycles |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Category | US10CP221127 |
| Reset time | 20 ms |
| Test levels | Level A group mounting |
| Torque value | 7.08 lbf.in (0.8 N.m) |
| Operating rate | <= 18000 cycles/hour no-load |
| Operating time | 20 ms |
| Device short name | RXG |
| Average resistance | 6300 Ohm at 73 °F (23 °C) +/- 10 % |
| Contact resistance | 100 mOhm |
| Device presentation | Complete product |
| Dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation |
| Protection category | RT I |
| Overvoltage category | III |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 1250 VA |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Electrical insulation class | Class F |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
RXG25F7
