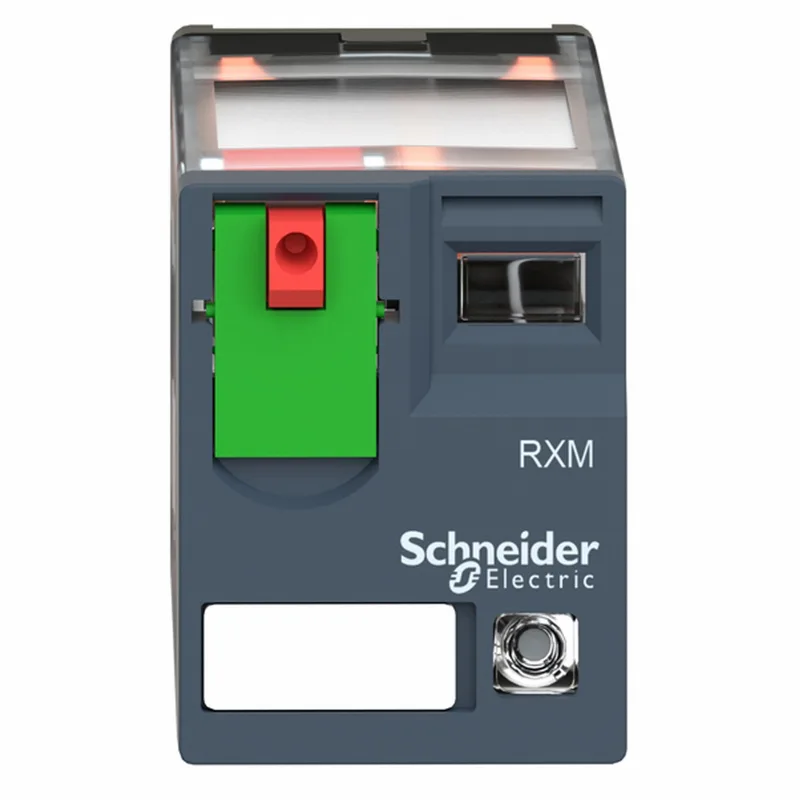

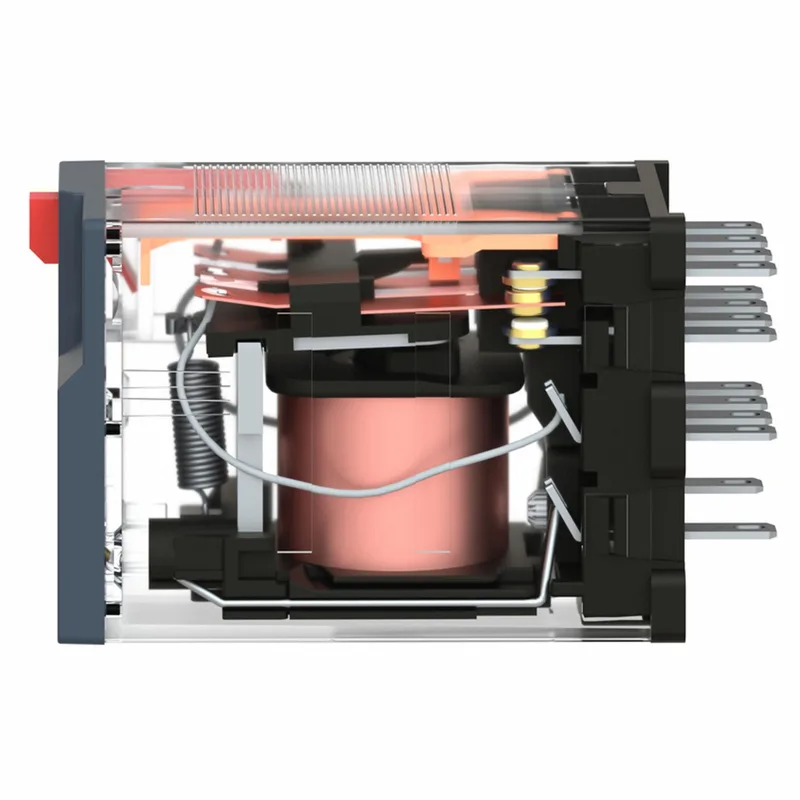

Schneider Electric RXM4AB2E7
MPNRXM4AB2E7
Obsolete
SQUARE D RXM4AB2E7: PLUG-IN RELAY 250V 6A RXM +OPTIONS
$4.75Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Miniature relay |
| Series name | RXM series |
| Control type | Lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 4 C/O |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc |
| Coil voltage | 48 V AC 50/60 Hz |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| Rated operational voltage limits | 38.4...52.8 V AC |
| [Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs |
All specifications
| Parameter | Value |
|---|---|
| Load current | 6 A 250 V AC 6 A 28 V DC |
| Continuous output current | 5 A |
| [Ie] rated operational current | 3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL |
| [Ithe] conventional enclosed thermal current | 6 A |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Pollution degree | 2 |
| Shock resistance | 10 gnin operation 30 gnnot operating |
| Vibration resistance | 3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 5 gn +/- 1 mm 10...150 Hz)5 cycles not operating |
| CAD overall depth | 3.16 in (80.35 mm) |
| Contacts material | AgNi |
| CAD overall height | 3.3 in (82.8 mm) |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 10000000 cycles |
| Standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| Category | US10CP221127 |
| Reset time | 20 ms |
| Status LED | With |
| Test levels | Level A group mounting |
| Shape of pin | Flat (faston type) |
| Operating rate | <= 18000 cycles/hour no-load |
| Operating time | 20 ms |
| Average resistance | 710 Ohm 20 °C +/- 15 % |
| Compatibility code | RXM |
| Operating position | Any position |
| Average consumption | 1.2 VA 60 Hz |
| Device presentation | Complete product |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
| Protection category | RT I |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 1500 VA/168 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Average coil consumption in | 1.2 60 Hz |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
RXM4AB2E7
