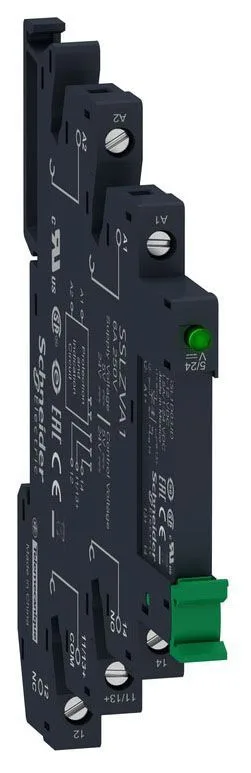

Schneider Electric SSL1A12BDPV
MPNSSL1A12BDPV
Active
Square D SSL1A12BDPV 2A Solid-State Relay|Square D SSL1A12BDPV 2A Solid-State Relay
$30.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Solid State Relays |
| Solid state output type | Zero voltage switching SCR output |
| Output voltage | 24...250 V AC |
| Maximum voltage drop | <1.1 V on-state |
| Maximum switching voltage | 5 V DC turn-off |
| Minimum switching voltage | 16 V DC turn-on |
| Coil voltage | 16...30 V DC |
| Load current | 0.07...2 A |
| Surge current | 120 A 16.6 ms 115 A 20 ms |
| Line rated current | 2 A |
| Maximum leakage current | 4 mA off-state |
| Phases | 1 phase |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Mounting support | Screw socket |
| Connections - terminals | Flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) Solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) |
| Response time | 0.5 cycle (turn-on) 0.5 cycle (turn-off) |
| Pollution degree | 2 |
| Depth | 3.1 in (79.5 mm) |
| Width | 0.2 in (6.2 mm) |
| Height | 3.8 in (96.5 mm) |
| Standards | IEC 60950-1 IEC 61000 IEC 62314 IEC 61984 EN 61984 |
| DV (dt) | 500 V/µs off-state at maximum voltage |
| Marking | CURus CSA CE EAC |
| Category | US10CP221127 |
| CLAMPING FORCE | < 0.5 N.m 4.4 lb-in |
| Input impedance | 3.43 kOhm |
| Flame retardance | V0 conforming to UL 94 |
| Device short name | SSL |
| Device presentation | Complete product |
| Dielectric strength | 2500 V for input/output |
| Overvoltage category | III |
| Capacitance unbalance | 1.5 pF input/output |
| Output switching mode | Zero voltage switching |
| Transient overvoltage | 600 V AC |
| Maximum i2t for fusing | 285 A².s for 10 ms at 50 Hz 260 A².s for 8.3 ms at 60 Hz |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | -4...158 °F (-20...70 °C) |
