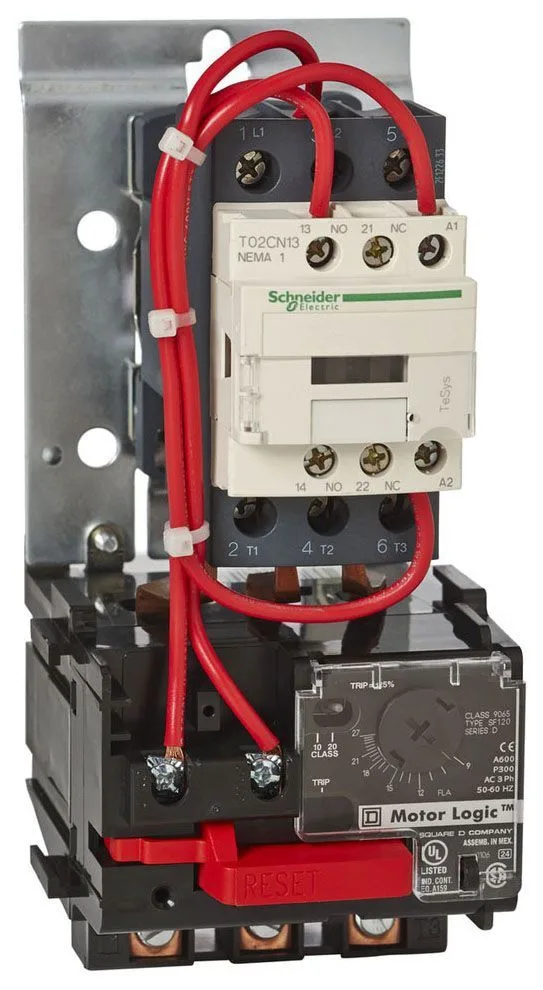

Schneider Electric T36CN13G7
MPNT36CN13G7
Active
OPEN STARTER TESYS NEMA SIZE 13 P 120VAC|OPEN STARTER TESYS NEMA SIZE 13 P 120VAC
$417.00 – $454.23Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Starter type | Non reversing |
| Overload type | Solid state Motor Logic class 10/20 9...27 A |
| Enclosure type | Not rated (open device) |
| Range of product | TeSys N |
| Control circuit type | Common control circuit |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 120 V AC |
| Current rating | 27 A |
| Horsepower rating | 7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC |
| Poles | 3P |
| Phases | 3 phase |
| Electrical connection | Screw clamp terminals |
| Certifications | UL Listed CSA |
| Product | Starter |
| Category | US10CP121198 |
| NEMA size | 1 |
| Auxiliary contacts | 1 NO + 1 NC |
MPN
T36CN13G7
