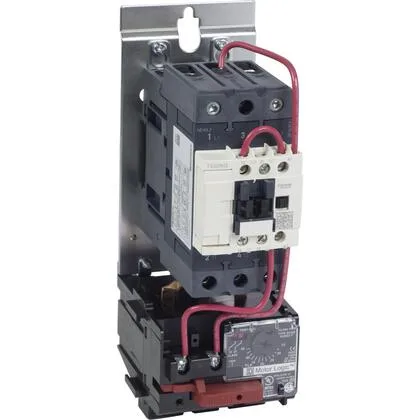

Schneider Electric T36DN13G7
MPNT36DN13G7
Active
OPENSTARTERTESYSNEMASZ23P120VAC|OPENSTARTERTESYSNEMASZ23P120VAC
$715.00 – $972.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Starter type | Non reversing |
| Overload type | Solid state Motor Logic class 10/20 15...45 A |
| Enclosure type | Not rated (open device) |
| Range of product | TeSys N |
| Control circuit type | Common control circuit |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 120 V AC |
| Current rating | 45 A |
| Horsepower rating | 10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC |
| Poles | 3P |
| Phases | 3 phase |
| Electrical connection | Screw clamp terminals |
| Certifications | UL Listed CSA |
| Product | Starter |
| Category | US10CP121198 |
| NEMA size | 2 |
| Auxiliary contacts | 1 NO + 1 NC |
MPN
T36DN13G7
