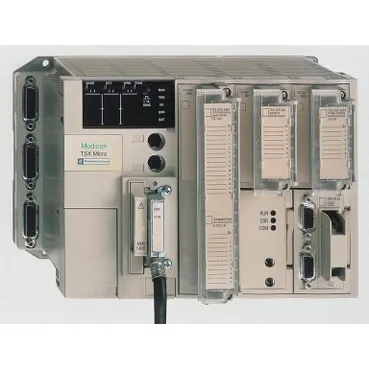

Schneider Electric TSX3722001
MPNTSX3722001
Active
Modular base controller, Modicon TSX Micro, UNI-TELWAY, 10Hz, 19.2kbit/s
$939.80 – $1,493.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Overload protection Short-circuit |
| Range of product | Modicon TSX Micro automation platform |
| Analogue input type | 0...10 V 8 |
| Counting input type | Discrete incremental counter 1 10 Hz Incremental 1 10 Hz |
| Analogue output type | 0...10 V 1 |
| Product or component type | Modular base controller |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Primary voltage | 100...240 V 90...264 V AC |
| Input current | 2 mA 60 A |
| Output current | 0.5 A |
| Total useful secondary power | 24 W |
| Network frequency | 50...60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...95 % without condensation for operation 5...95 % without condensation for operation |
| Operating altitude | 0...2000 m |
| Depth | 152 mm |
| Width | 341.4 mm |
| Height | 151 mm |
| Realtime clock | With |
| Number of slots | 3 |
| System overhead | 2.3 ms for master task |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Application structure | 1 fast task 16 event tasks 1 master task |
| Immunity to microbreaks | 20 ms |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Ambient air temperature for storage | -25...70 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
TSX3722001
