Schneider Electric UHTRS223A
MPNUHTRS223A
Active

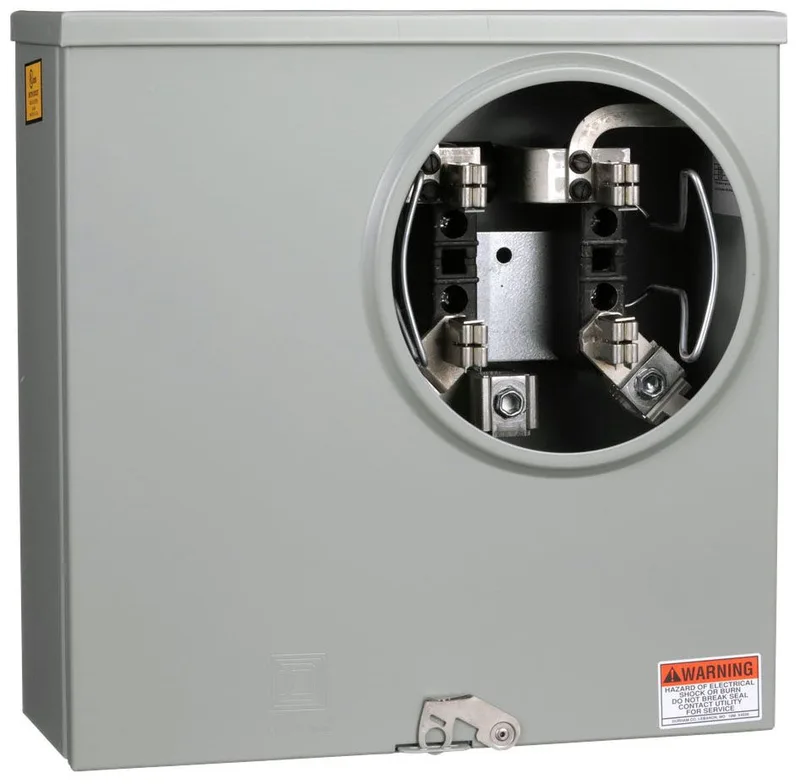

METER SOCKET RINGLESS HORN UG 200A|METER SOCKET RINGLESS HORN UG 200A
$287.00 – $543.27Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Hub type | Solid top |
| Bypass type | Horn bypass |
| Meter socket type | Ringless |
| Product or component type | Meter Socket |
| [Ue] rated operational voltage | 600 V AC |
| Meter socket rated current | 200 A |
| Phases | 1 phase |
| IP rating | NEMA 3R |
| Enclosure material | Steel |
| Device mounting | Surface |
| Electrical connection | Lugs 0.5" hex |
| Depth | 4.94 in (125.48 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 13.00 in (330.20 mm) |
| Height | 13.00 in (330.20 mm) |
| Category | US10DE400039 |
| AWG gauge | AWG 1/0...350 kcmil 1 aluminium/copper)line AWG 14...AWG 2 1 aluminium/copper)service ground |
| Box number | 2R |
| Number of jaws | 4 without jaw release |
| Wiring configuration | 3-wire |
| Service feed location | UG |
MPN
UHTRS223A
