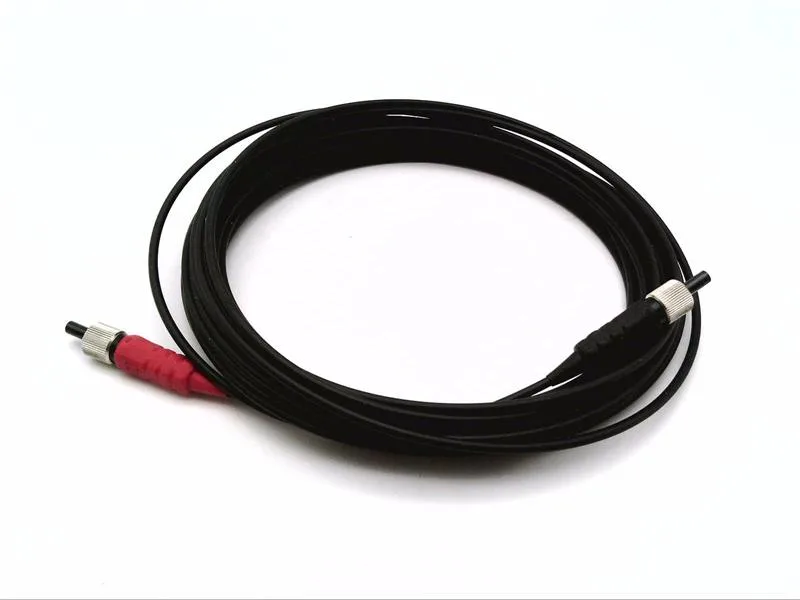

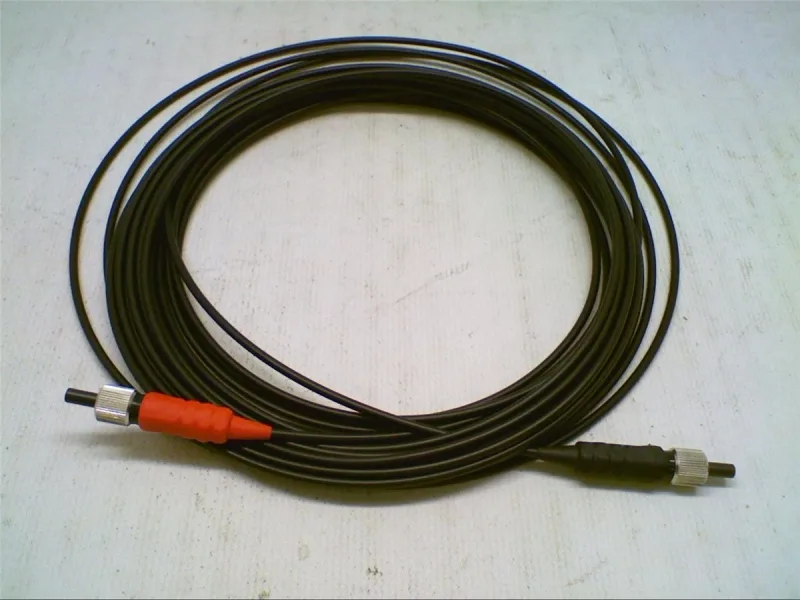

The VW3E3056R070 is a 7.0-meter sercos communication cable from Schneider Electric, part of the VW3E3056 cable family used to connect drives and motion controllers on a sercos fiber-optic ring. The cable carries the category code US1PC5218350 and is packaged as a single unit.
Schneider Electric has classified the VW3E3056R070 as Obsolete. This means the manufacturer no longer produces the cable and has closed the last-time-buy window. The combination of Obsolete product status and mature lifecycle stage confirms that this is a discontinued part with no factory replenishment available.
What This Cable Does
A sercos (SErial Real-time COmmunication System) cable like this one carries the fiber-optic ring between a master controller and servo drives or remote nodes. The 7.0-meter length suits panel-to-panel runs or connections between a drive cabinet and a nearby motor-mounted node. The cable is pre-terminated with the sercos connector, so the length is fixed — no field cutting or re-termination.
