Schneider Electric VW3L30010R200 — Motor Control Accessories

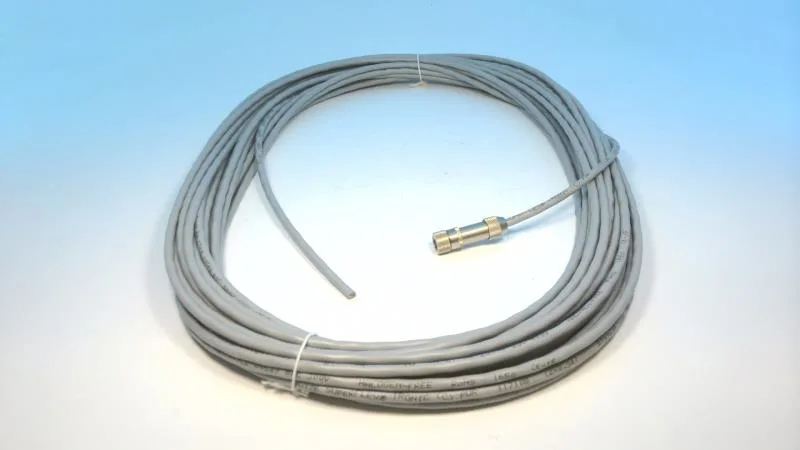

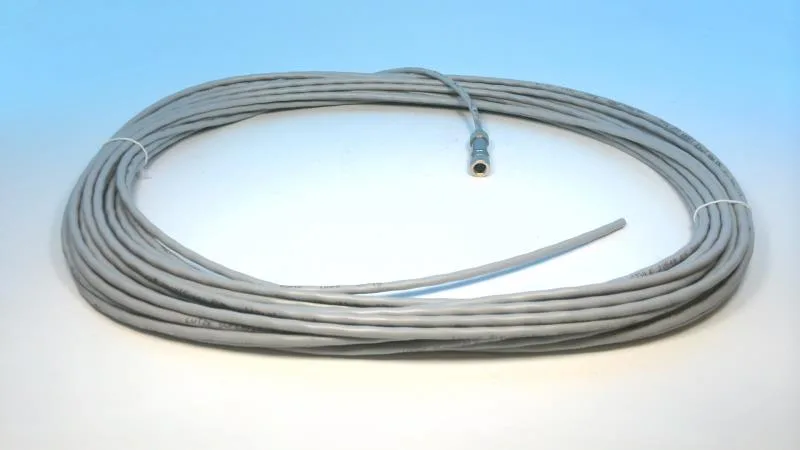

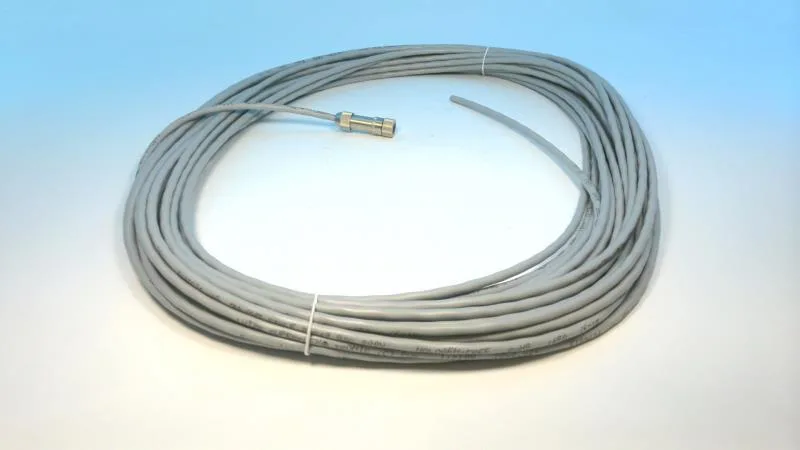

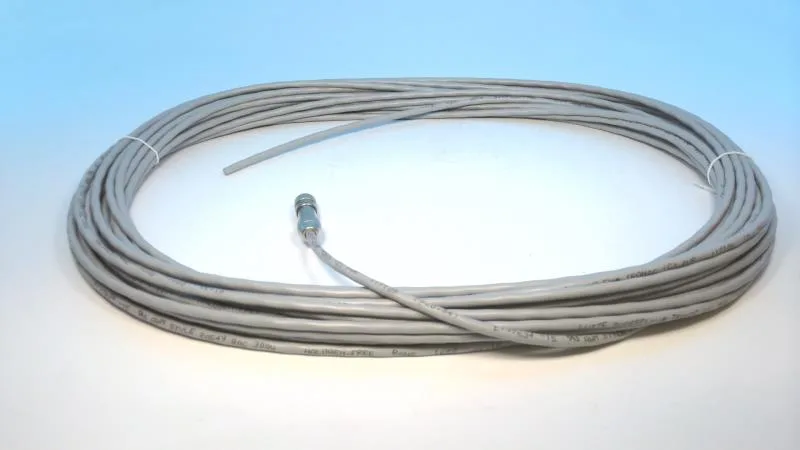

VW3L30010R200 STO Cable, 20m, M8 4-pin, Lexium Drive

MPNVW3L30010R200
Active

Schneider Electric Lexium integrated drive accessory, VW3L30010R200, STO safety cable, 20 m, M8 4-pin female connector.

$138.43Ref. price · indicative, final on quote
Schneider Electric VW3L30010R200 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VW3L30010R200 — Identification
ParameterValue
Product / component typeCable for safe torque off safety function for industrial connector
Accessory categoryConnection accessories
Accessory typeCable
Destination / intended useFor drives with industrial connectors for safe torque off
Product rangeLexium integrated drive
VW3L30010R200 — Cable & Connector
ParameterValue
Cable length65.6 ft (20 m)
Electrical connection1 female connector M8, 4 pins

Product details

The VW3L30010R200 is a dedicated Safe Torque Off (STO) cable for the Lexium integrated drive range. It connects the drive's industrial STO connector to the safety circuit, carrying the two-channel stop signal that removes motor torque independently of the drive controller. The 20 m (65.6 ft) length covers runs from a safety relay or PLC output module to a drive mounted on a moving gantry or at the far end of a conveyor line.

Connector and wiring detail

One end carries a female M8, 4-pin connector — the standard interface for Lexium integrated drive STO inputs. The other end is unterminated, letting the panel builder land the wires on a safety relay or terminal block. M8 4-pin is a compact industrial form factor; the 20 m cable can be routed through cable trays or energy chains without a junction box mid-run.

Listed as active in the manufacturer's lifecycle system. No phase-out or last-time-buy notice is attached to this order code.

Frequently asked questions

What is the cable length of VW3L30010R200?

65.6 ft (20 m). That is the total cable length from the M8 connector to the unterminated end.

Where can I buy VW3L30010R200 and get a price?

Sourced to order through independent distribution. Submit an RFQ; availability and current pricing are confirmed at quote time.

What is the closest alternative to VW3L30010R200 in this family?

No pin-compatible or functionally identical alternative is listed in the manufacturer's official documentation for this order code. The VW3L30010R200 is the specific STO cable for Lexium integrated drives with the M8 4-pin interface at 20 m length.

MPN
VW3L30010R200
