What it is and where it sits

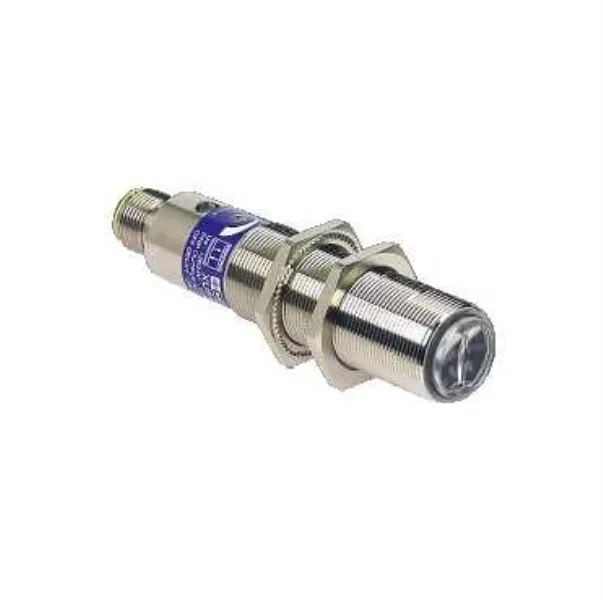

The XU5M18U1D is a tubular M18 diffuse-reflective photoelectric sensor from the Square D / Telemecanique XU5 series, with a 4-pin micro connector on a 3-wire cable and a PNP normally-open output. Its class job is short-range object detection on a DC control loop — presence verification on a conveyor, part-in-place check on a fixture, or end-of-stroke confirmation where a 20 mm throw is enough and a through-beam pair would be overkill. The M18 threaded barrel in nickel-plated brass and the IP67 sealing make it a natural fit for washdown-adjacent machinery and oily panel-builder environments where a plain plastic-body proximity switch would be marginal.
Sensing performance
Nominal diffuse range is 20 mm with a 0.5 ms on/off response time, which lands at roughly 1000 Hz operating frequency — fine for high-speed indexing and small-part counting but not the device you pick for sub-millisecond registration. The sensing beam is ultraviolet in a light-operate mode, so dark or matte targets read more reliably than mirror-finish surfaces, which would specular-reflect the UV away from the receiver. Ambient window is -13 to 131 °F, which covers most unheated cabinets and mildly conditioned cell enclosures; outside that band the sensor is outside its published envelope.
Approvals and compliance
The part carries UL, CSA, and CE marks, so it slots into machinery built for North American and European destinations without opening a separate component deviation. A California Proposition 65 warning applies for diisononyl phthalate and di-isodecyl phthalate — administrative paperwork for the documentation pack rather than an electrical concern, but it does need to travel with the shipment into California.
