Fork sensor placement in a pick-and-place line

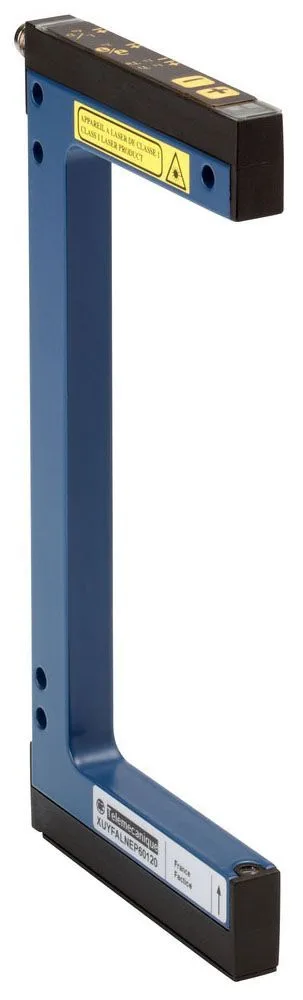

The XUYFALNEP60080 is a Telemecanique photoelectric fork sensor from Schneider Electric, designed for part-present detection in automated assembly and packaging lines. The fork form factor eliminates separate emitter-receiver alignment — the emitter and receiver sit opposite each other in a single housing, so the beam is factory-aligned.
Signal integrity in a VFD-heavy cabinet
A photoelectric fork sensor like this one sits close to the detection point — typically on a conveyor rail or pick-and-place gripper — with the cable running back to a PLC input module. In a cabinet with VFDs, the cable run should be separated from drive power cables by at least 6 inches to keep induced noise off the signal line. The fork sensor's output is a clean digital signal when the beam is uninterrupted or broken. If the downstream PLC input shows intermittent false triggers, check the cable shield termination first — a floating shield picks up radiated noise from the VFD output cables.
