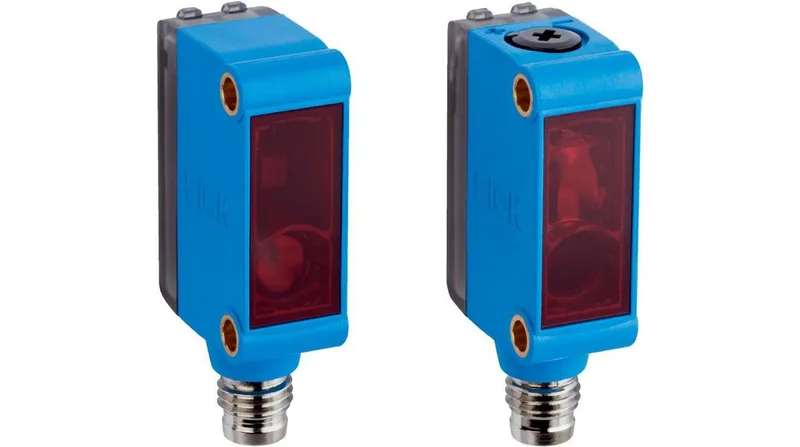

The SICK GSE6L-P4211 is a miniature through-beam photoelectric sensor from the G6 series, using a red laser light source to detect objects at distances up to 30 m. The 12 mm wide housing fits into tight panel spacing where a standard 18 mm cylindrical sensor won't go — think multi-sensor arrays on a pick-and-place gantry or conveyor edge. The 30 m range means it can span a wide conveyor belt or a warehouse aisle without a reflector; the red laser gives a visible spot for quick optical alignment during commissioning. The 625 µs response time catches parts moving at several meters per second, so it suits high-speed packaging or sorting lines.
Deployment context — where this sensor works
The M8 4-pin connector (not a pigtail) keeps cable replacement simple: if the cable gets chewed on a moving line, you swap the cordset, not the sensor. Operating range of -20 °C to 50 °C covers most indoor factory environments but not freezers; if the line runs below -20 °C, look at the W26 series peers with -40 °C rating. Supply voltage spans 10 V to 30 V, so it runs on a standard 24 VDC control supply without a regulator.
