SICK WS27-3D2430
MPNWS27-3D2430

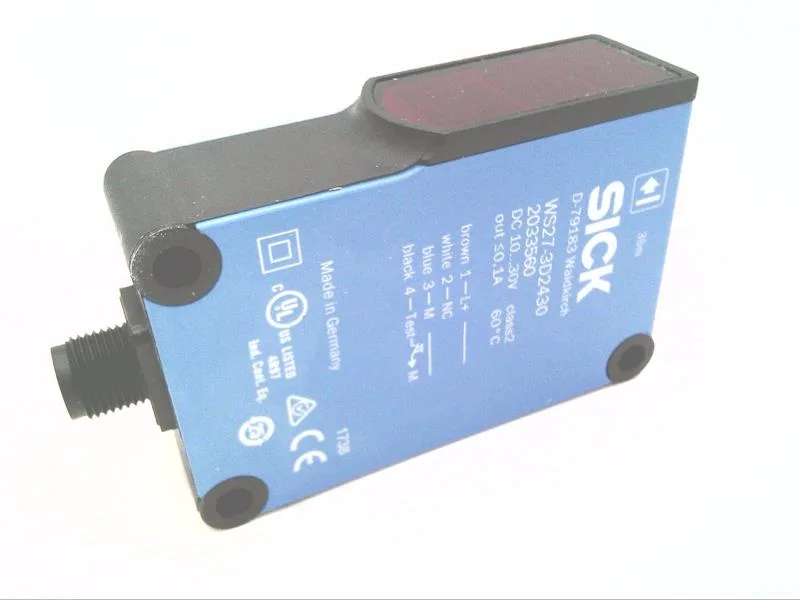

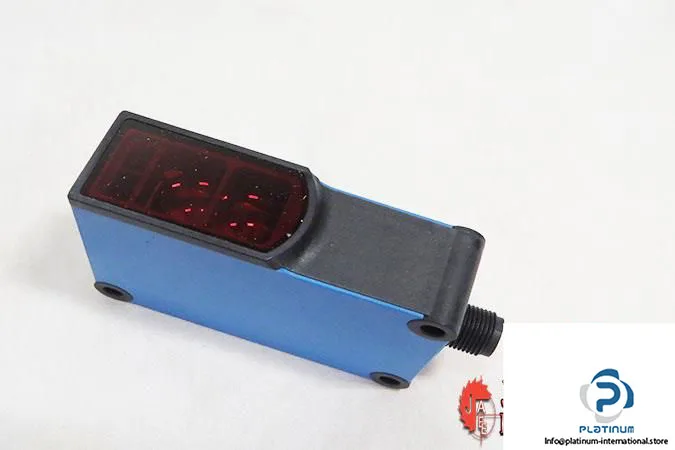

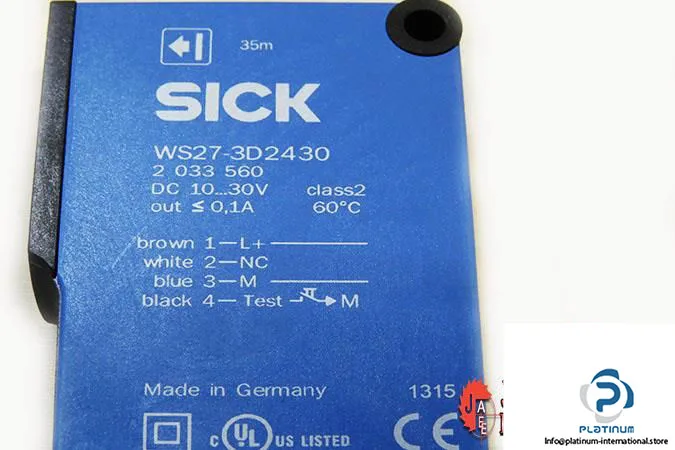

SICK WS27-3D2430 THROUGH-BEAM PHOTOELECTRIC SWITCH
$45.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | WS27-3D2430 |
Sensing
| Parameter | Value |
|---|---|
| Type | THROUGH-BEAM SENSOR SWITCH |
| Response time | ≤ 0.5 ms |
| Light source | LED |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | DC 10 … 30 V |
Connection
| Parameter | Value |
|---|---|
| Connection type | Male connector M12, 4-pin |
Specifications
| Parameter | Value |
|---|---|
| Sensing Range | 0 m … 25 m |
| Condition | New |
Other specifications
| Parameter | Value |
|---|---|
| Type of light | Visible red light |
| Output current | ≤ 100 mA |
| IP rating | IP67 |
| Switching output | PNP |
| Sensing range max. | 0 m … 35 m |
| Switching frequency | 1,000 Hz |
| Light spot size (distance) | Ø 600 mm/25 m |
| Ambient operating temperature: – | 40 °C … +60 °C |
MPN
WS27-3D2430
