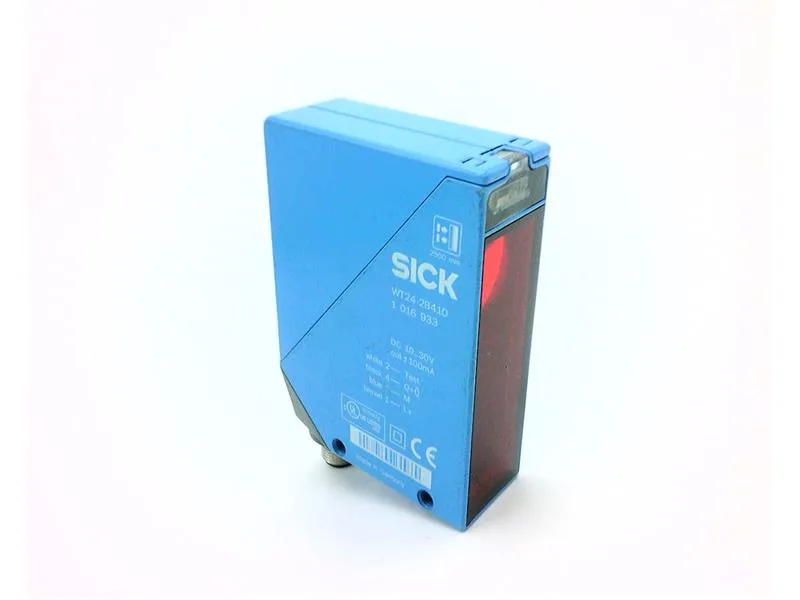

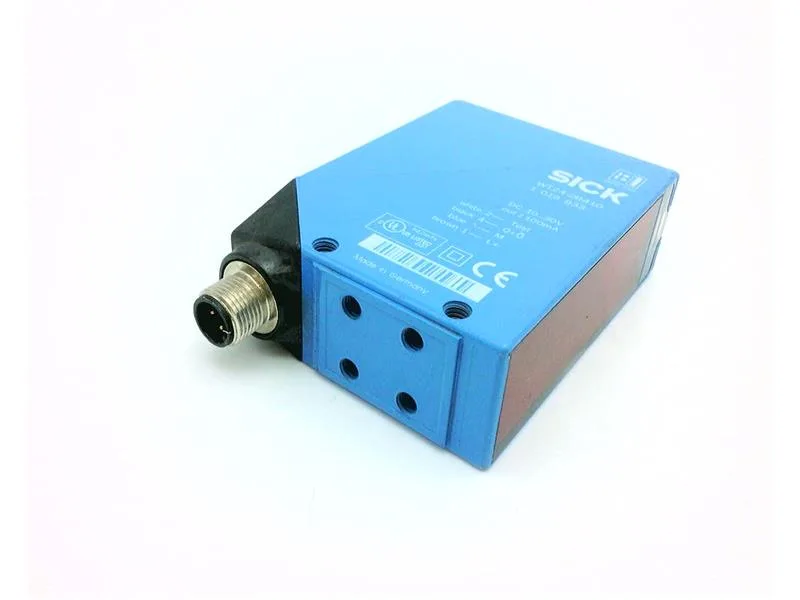

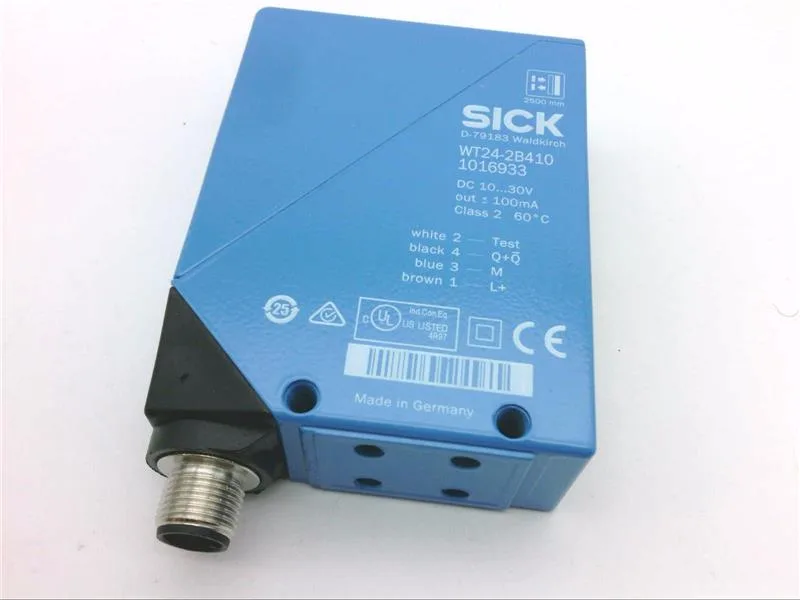

SICK WT24-2B410
MPNWT24-2B410
Photoelectric Sensor NPN / PNP 2.5m 500us 30V 100mA LED, Infrared Connector, M12, 4-Pin IP69K W24-2
$297.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W24-2 |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 2.5 m |
| Sensing distance, min. | 100 mm |
| Response time | 500 us |
| Light type | LED, Infrared |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | NPN;PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP69K |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 65 mm |
| Width | 27 mm |
| Height | 87.5 mm |
MPN
WT24-2B410
