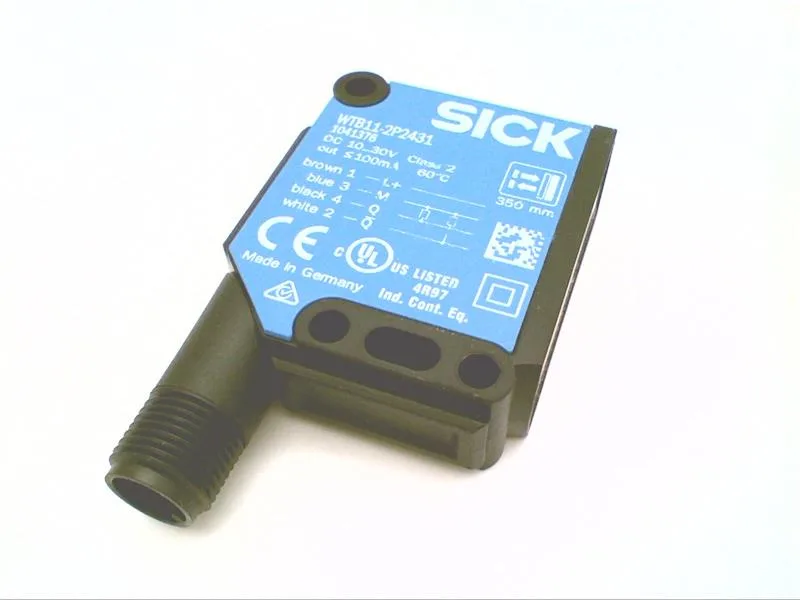

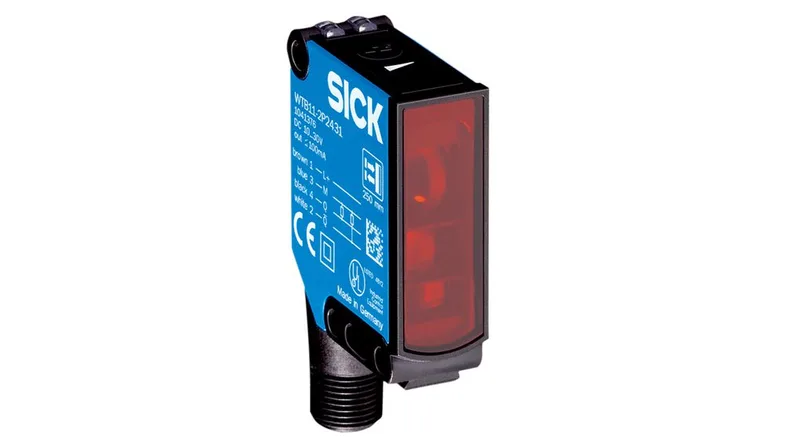

SICK WTB11-2P2431
MPNWTB11-2P2431
Optical Sensor PNP 350mm 2.5ms 30V 100mA LED, Visible Red Light Connector, M12, 4-Pin IP66 / IP67 / IP69K W11-2
$133.35 – $191.64Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W11-2 |
| Sensor type | Photoelectric Proximity Sensor, Background Suppression |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 350 mm |
| Sensing distance, min. | 20 mm |
| Response time | 2.5 ms |
| Light type | LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light / Dark ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66;IP67;IP69K |
| Operating temperature, min. | -30 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 15.6 mm |
| Height | 48.5 mm |
MPN
WTB11-2P2431
