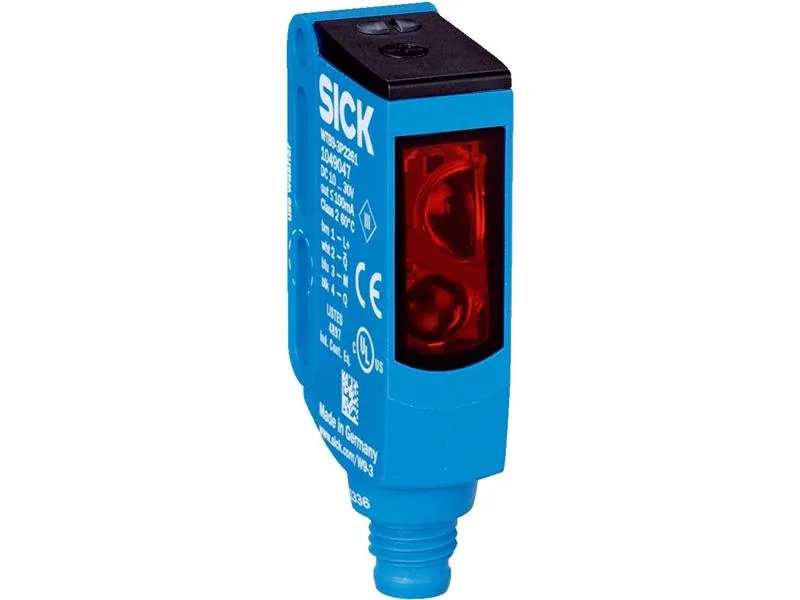

SICK WTB9-3P2261
MPNWTB9-3P2261
Photoelectric Sensor PNP 350mm 333us 30VDC 100mA IP69K W9
$160.02 – $201.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W9 |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 350 mm |
| Sensing distance, min. | 20 mm |
| Response time | 333 us |
| Light type | LED, Red |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 VDC |
| Operating voltage, max. | 30 VDC |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M8, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP69K |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 50 mm |
| Width | 12 mm |
| Height | 24 mm |
MPN
WTB9-3P2261
