ABB 1SVR730824R9300

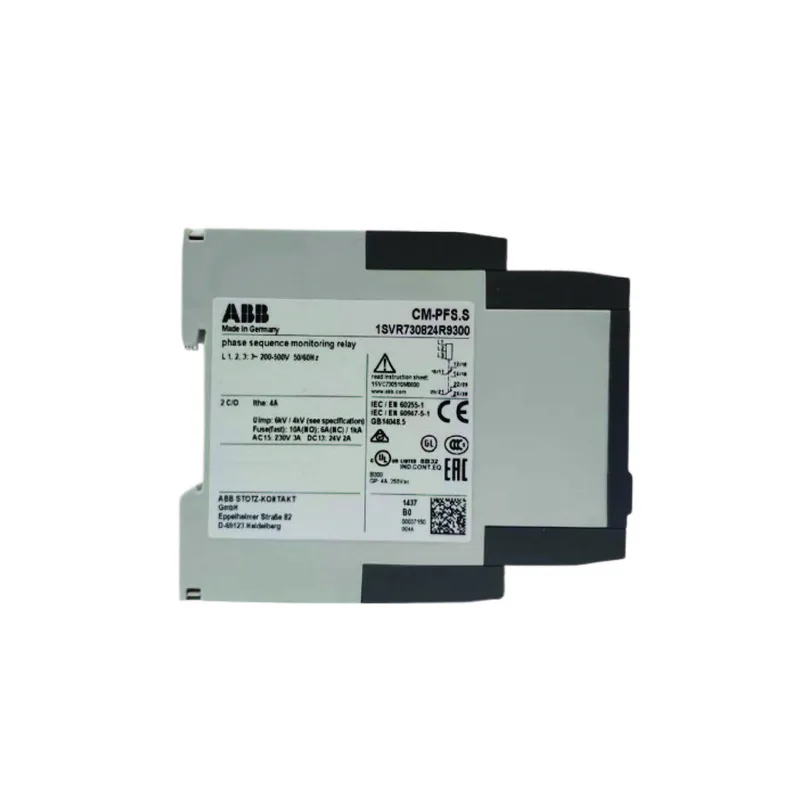

ABB 1SVR730824R9300 Voltage Monitor, 3-Phase, 200-500V AC

MPN 1SVR730824R9300

ABB 1SVR730824R9300, 3-Phase Monitoring Relay / Voltage Monitor, 200-500V AC, SPDT, DIN Rail Mount.

$45.72 – $98.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SVR730824R9300 specifications
ParameterValue
Product typeVoltage Monitor
Phases3-phase
MountingDIN Rail

Product details

What the 200-500V AC range means for your panel

The ABB 1SVR730824R9300 is a 3-phase voltage monitor relay that continuously measures all three phases against a 200-500V AC range. It is a functional protection device: it trips the SPDT output when it detects loss of any phase or an unbalance condition between phases. The 200-500V AC range covers common low-voltage three-phase supplies — 208V, 240V, 400V, 480V — without needing a separate voltage tap or range card. That means one part number covers most industrial panel voltages in North America and Europe.

Phase loss and unbalance detection — what trips the relay

The relay monitors for loss of any phase (a single-phase condition that stalls motors and overheats windings) and phase unbalance (asymmetrical voltage that causes negative-sequence currents). When either condition exceeds the internal threshold, the SPDT output switches state, typically dropping out a motor contactor or signaling a PLC input. Mounting is DIN rail (snap-on to standard 35 mm rail per EN 60715), so it integrates into a control panel alongside contactors, overloads, and terminal blocks without extra brackets.

MPN
1SVR730824R9300
