ABB 266DRH.H.S.S.A.2.A.1-....L5.B2 /S26RA.H.G1.S.F.SM.2.B.J.S.N.N.N
MPN266DRH.H.S.S.A.2.A.1-....L5.B2 /S26RA.H.G1.S.F.SM.2.B.J.S.N.N.N

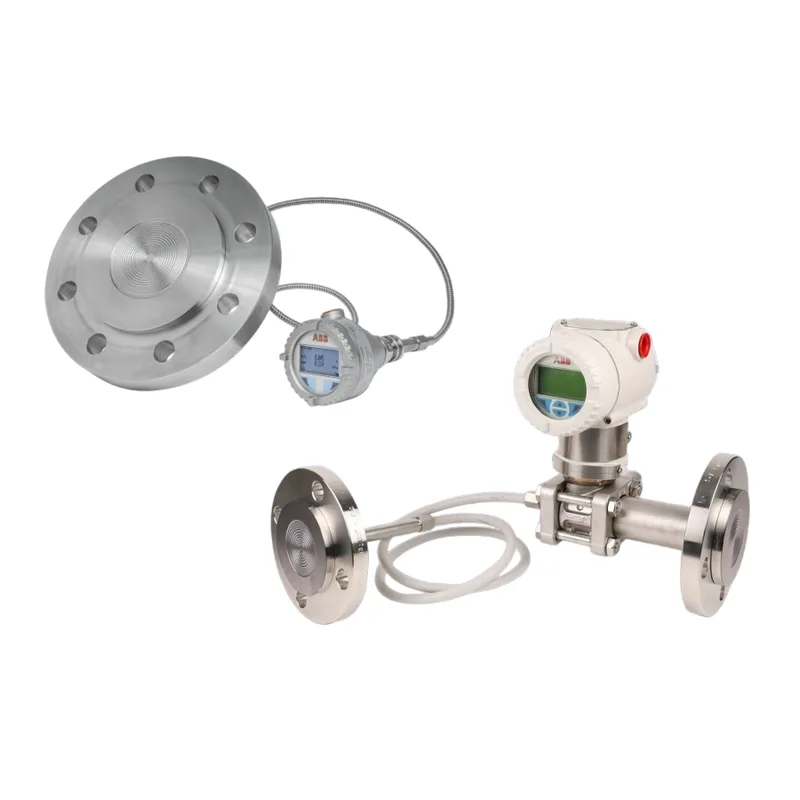

266DRH Pressure Transmitters With Seals
$2,988.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting flange material | S = AISI 316 ss |
| Mounting flange rating (Size) | G1 = ASME CL 150 / 3 in. |
| Mounting bracket (shape and material) | B2 = For pipe/wall mounting - AISI 316 L ss |
| Transmitter side of connection | H = High pressure side |
| Housing material and electrical connection | A = Aluminium alloy ( barrel version) 1/2 in. – 14 NPT |
| Process flanges (adapters material and connection (wetted parts)) | A = AISI 316 L ss (Horizontal connection) | 1/4 in. – 18 NPT-f direct | NACE |
| Weight | 4 kg approx (8.8 lb) + 0.934 kg (Fill Fluid) |
| Shipping weight | 6 Kg |
| Diaphragm material | SM = AISI 316 L ss | NACE |
| Flushing ring material | N = None |
| Extensions length and material | F = Flush |
| Diaphragm material (Fill fluid (wetted parts)) | S = AISI 316 L ss | Silicone oil (one seal only to be quoted) | NACE |
All specifications+14 ▾
| Parameter | Value |
|---|---|
| BASE MODEL | 2 6 6 D R H = Differential Pressure Transmitter with remote seal– BASE ACCURACY 0.06 % |
| Fill fluid | S = Silicone oil PMX 200 10 cSt | (-40 to 250 °C; -40 to 480 °F) |
| Application | S = Differential measurement at standard static pressure |
| SBASE MODEL | S 2 6 R A = Rotating flange diaphragm seal (Raised face flush and extended) to ASME B16.5 |
| Integral LCD | L5 = TTG (Through-The-Glass) digital LCD controlled display |
| Manufacturer | ABB |
| Flushing ring | Plug and Gasket : N = No plug - No gasket |
| Estimated lead time | 6 - 8 Weeks |
| Seal surface finish | 2 = Smooth |
| Capillary protection | B = AISI 316 L ss armour with PVC protective cover |
| SENSOR - span limits | H = 2.67 and 160 kPa | 26.7 and 1600 mbar | 10.7 and 642 inH2O |
| Capillary length | J = 5 (17) |
| Output (Additional options) | 1 = HART and 4 to 20 mA - Advanced functionality (includes option R1) |
| Bolts (Gasket (wetted parts)) | 2 = AISI 316 ss | PTFE | NACE (non exposed) |
MPN
266DRH.H.S.S.A.2.A.1-....L5.B2 /S26RA.H.G1.S.F.SM.2.B.J.S.N.
