ABB 266HRH.S.R.R.T.8-.W8.L1.B7.....I2..C1...H3 + S26RR.H.E2.S.F.SM.3.A.L.S.N.N.N
MPN266HRH.S.R.R.T.8-.W8.L1.B7.....I2..C1...H3 + S26RR.H.E2.S.F.SM.3.A.L.S.N.N.N

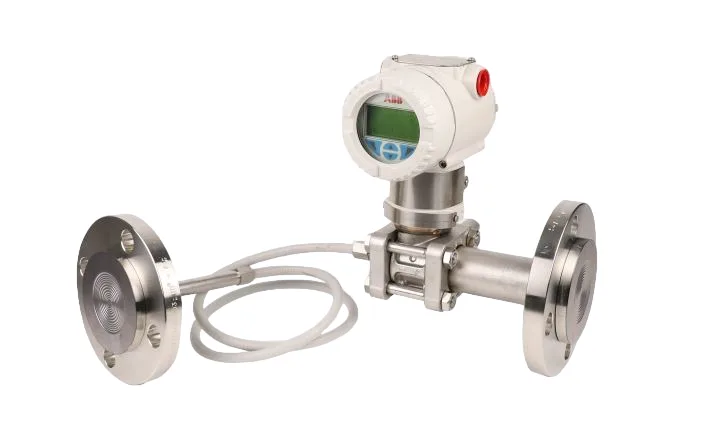

Gauge Pressure Transmitter with Remote Seal
$4,139.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting flange material | S = AISI 316 ss |
| Mounting flange rating (Size) | E2 = ASME CL 300 / 2 in. |
| Mounting bracket (shape and material) | B7 = For pipe/wall mounting - AISI 316 L ss |
| Process connection | R = Remote or direct mount seal |
| Transmitter side of connection | H = High pressure side |
| Housing material and electrical connection | T = AISI 316 L ss (barrel version) (I2 or I3 required) M20 x 1.5 (CM20) |
| Weight | 2 kg approx (4.4 lb) |
| Shipping weight | 4 Kg |
| Diaphragm material | SM = AISI 316 L ss | NACE |
| Material traceability | H3 = Inspection certificate EN 10204–3.1 of process wetted parts (not for gaskets) |
| Flushing ring material | N = None |
| Diaphragm material (Fill fluid) | R = AISI 316 L ss | Silicone oil | NACE |
All specifications+16 ▾
| Parameter | Value |
|---|---|
| Other hazardous area certifications | W8 = Combined Inmetro (Brazil) - Intrinsic Safety Ex ia, Explosion Proof and Intrinsic Safety Ex ic |
| Fill fluid | S = Silicone oil PMX 200 10 cSt | (-40 to 250 °C; -40 to 480 °F) |
| Certificates | C1 = Inspection certificate EN 10204–3.1 of calibration (9-point) |
| Integral LCD | L1 = Digital LCD integral display |
| Manufacturer | ABB |
| Flushing ring | Plug and Gasket : N = No plug - No gasket |
| Extensions length | F = Flush |
| Estimated lead time | 10 - 12 Weeks |
| Seal surface finish | 3 = Ring joint |
| Additional tag plate | I2 = Tag and certification stainless steel plates (laser printed) |
| Capillary protection | A = AISI 316 L ss armour |
| SENSOR - span limits | S = 267 and 16000 kPa | 2.67 and 160 bar | 38.7 and 2320 psi |
| Capillary length | L = 6 (20) |
| Output (Additional options) | 8- = HART and 4 to 20 mA Safety, certified to IEC 61508 |
| Rotating flange diaphragm seal (flush) ring joint to ASME b16.5 | S 2 6 R R |
| Gauge pressure transmitter with remote seal – BASE ACCURACY 0.06 % | 266HRH |
MPN
266HRH.S.R.R.T.8-.W8.L1.B7.....I2..C1...H3 + S26RR.H.E2.S.F.
