ABB 266HSH.P.S.B.A.7-...LS.R1.B6
MPN266HSH.P.S.B.A.7-...LS.R1.B6

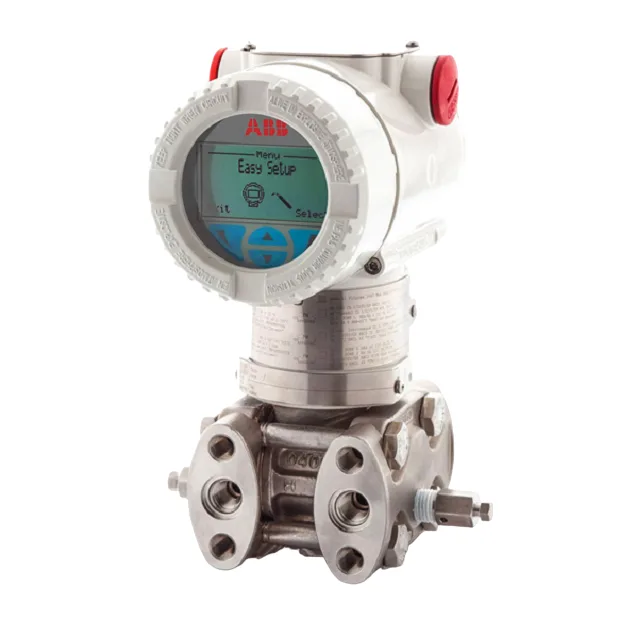

266HSH Gauge Pressure Transmitter
$1,583.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting bracket (shape and material) | B6 = For pipe/wall mounting – Carbon steel |
| Process connection (wetted parts) | BAISI 316 L ss1/2 in. – 14 NPT femaleNACE |
| Housing material and electrical connection | A = Aluminium alloy (barrel version) | 1/2 in. – 14 NPT |
| Weight | 2.1 kg approx (4.6 lb) |
| Shipping weight | 3 Kg |
| Diaphragm material (Fill fluid (wetted parts)) | S = AISI 316 L ss | Silicone oil | NACE |
| BASE MODEL | 2 6 6 H S H = Gauge Pressure Transmitter – BASE ACCURACY 0.06 % |
| Integral LCD | LS = Integrated digital LCD display |
| Manufacturer | ABB |
| Estimated lead time | 6 - 8 Weeks |
| SENSOR - span limits | P = 24 and 2400 kPa | 0.24 and 24 bar | 3.5 and 348 psi |
| Output (Additional options) | 7 = HART and 4 to 20 mA – Standard functionality |
| External non intrusive z, s and WP pushbuttons | R1 = Transmitters with external pushbutton |
MPN
266HSH.P.S.B.A.7-...LS.R1.B6
