What the C-curve and breaking capacities mean for branch-circuit protection

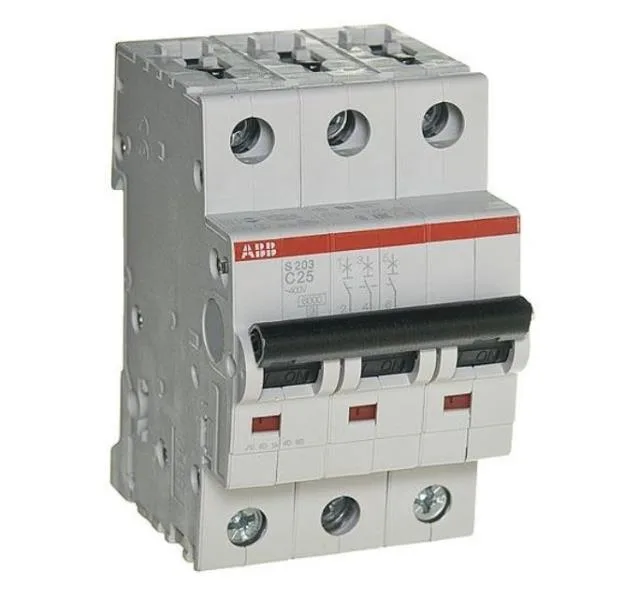

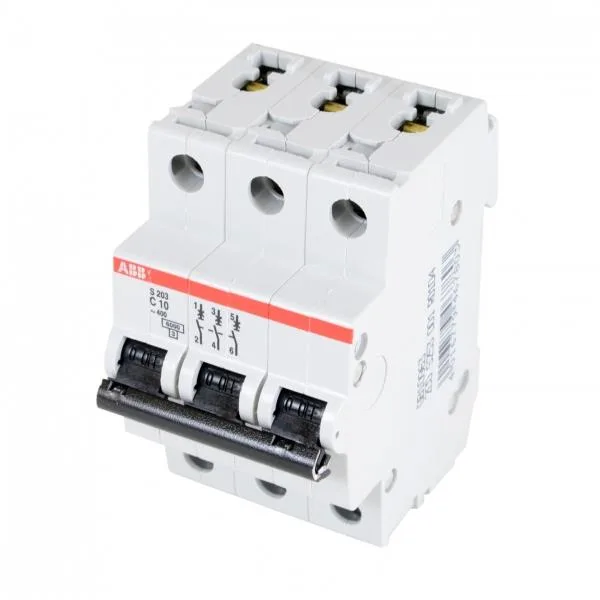

The ABB 2CDS253001R0254 is a 3-pole miniature circuit breaker with a C-trip characteristic, rated 25 A continuous at 440 V insulation voltage. The C-curve means the magnetic trip operates at 5–10× In (125–250 A), making it suitable for moderate inrush loads like small motors, transformers, or lighting banks where the start-up surge is higher than a resistive load but not extreme. Its rated short-circuit breaking capacity Icn is 6 kA per IEC 60898, while the ultimate breaking capacity Icu reaches 20 kA per IEC 60947-2. The Icu figure is the one that governs fault-withstand in an industrial panel — a 20 kA SCCR at 440 V means the breaker can safely clear a fault up to that level without upstream devices needing to intervene, which simplifies coordination in a distribution board.
Mounting, enclosure fit, and terminal design
The breaker snaps onto a standard DIN rail (EN 60715) and occupies 52.5 mm width (three modular units of 17.5 mm each). The 88 mm height and 69 mm depth fit within a standard distribution board or sub-panel enclosure. IP20 rating applies to the front face (finger-safe), while IP40 is achieved inside the enclosure — the terminals are protected against tools and small wires. The bi-directional cylinder-lift terminal accepts both copper and aluminium conductors up to the rated cross-section, with a maximum tightening torque of 2.8 Nm.
Compliance and overvoltage category
Rated for overvoltage category III (per IEC 60664), this MCB is suitable for fixed installations downstream of the main distribution board — the typical environment for branch-circuit protection in commercial and light industrial panels.
