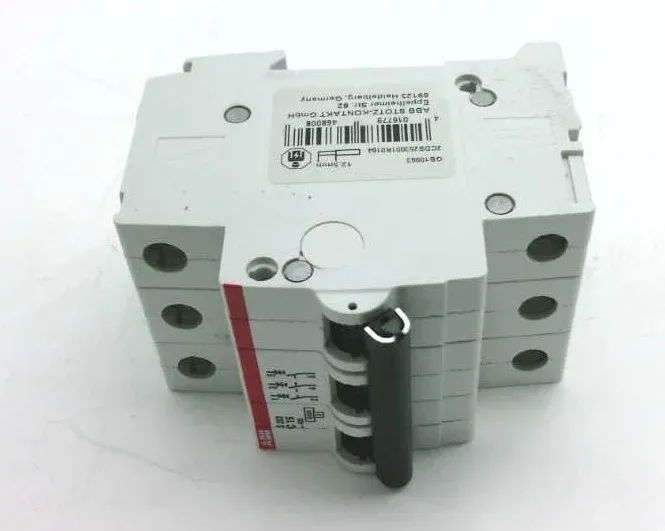

ABB S200 series miniature circuit breaker, order code 2CDS253001R0164, 3-pole, C-trip curve, 16 A rated current, 6 kA Icn / 20 kA Icu, 440 V rated insulation voltage, DIN rail mount, IP20/IP40.
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Parameter | Value |
|---|---|
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Width | 52.5 mm |
| Height | 88 mm |
| Depth | 69 mm |
| Parameter | Value |
|---|---|
| IP rating | IP20;IP40 |
| Mounting | DIN Rail Mount |
| Current | 16 A |
| Terminal contact type | Screw |
| Voltage | 440 V |
| Tripping characteristics | C |
| Tightening torque - Screw-Type max. | 2.8 Nm |
| Rated Short-Circuit breaking capacity icn | 6 kA |
| Rated Short-Circuit breaking capacity icu | 20 kA |
Rated 16 A, 440 V insulation voltage, DIN rail mount, IP20/IP40 enclosure. C-curve tripping characteristic suits general lighting and socket circuits. Two short-circuit ratings: Icn 6 kA rated breaking capacity; Icu 20 kA ultimate breaking capacity. Ensure Icn meets prospective fault current.
This is a standard ABB line item, widely stocked across distribution channels in Europe and APAC.
