Rated current and voltage — what drives the fit

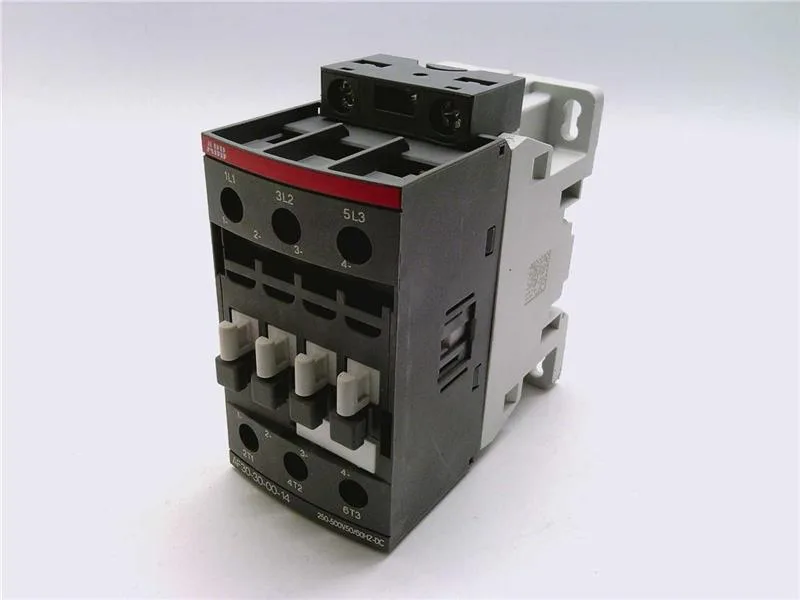

The ABB AF30-30-00-14 is a 3-pole IEC contactor rated for 50 A at 600 VAC. That 50 A figure is the continuous thermal current (Ith) under IEC 60947-4-1; it governs the resistive load it can switch continuously. For motor duty (AC-3), the same frame typically derates — the 50 A Ith means it handles a 3-phase motor up to roughly 22 kW at 400 VAC, though the exact motor rating depends on the load cycle and ambient temperature in the panel. The control coil accepts AC or DC across a single range of 250-500 V. That dual-voltage capability simplifies stocking — one coil covers both 277 VAC and 480 VAC control circuits common in North American panels, and the DC rating handles 250-500 VDC battery-backed trip circuits. No need to swap coils between AC and DC supplies.
Panel integration — what the DIN-rail mount means
In a control panel, that means it occupies one modular unit of width (roughly 45 mm per pole for this frame). Leave a finger's width of air gap above and below the contactor for natural convection cooling — the 50 A rating assumes free air at 40 °C ambient; stacking it tight against other heat sources derates the continuous current. No auxiliary contacts are fitted on this variant (the -00-14 suffix indicates zero auxiliaries). If you need feedback to a PLC or a hold-in circuit, an auxiliary contact block from the same AF-line family mounts on the side without tools. The contactor's coil terminals are clearly marked A1/A2 on the front face.
