ABB AF30-30-00-12

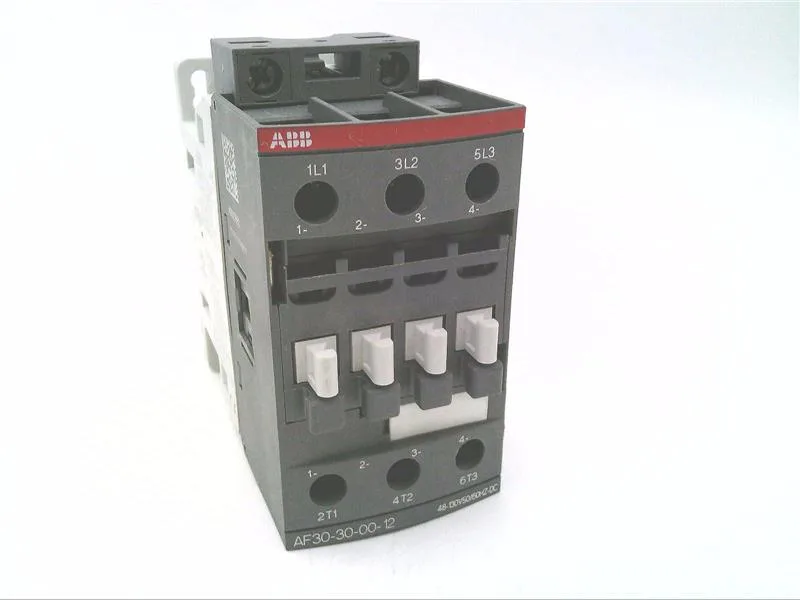

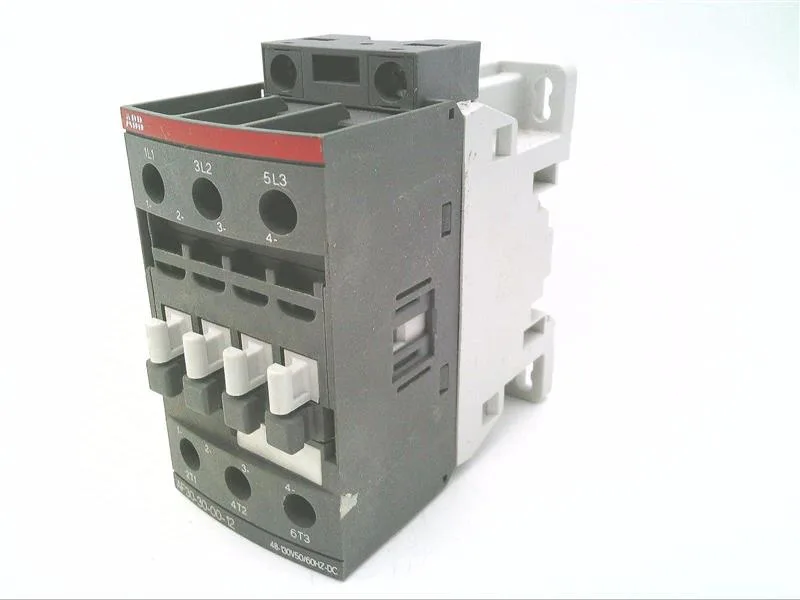

AF30-30-00-12 ABB Contactor, 50 A, 3-Pole, 600 VAC

MPN AF30-30-00-12

ABB AF-Line Series, AF30 Frame, IEC Contactor, 50 Amp, 3-Pole, 600 Volt AC Rated, 48-130 Volt AC/DC Coil.

$194.54 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF30-30-00-12 specifications
ParameterValue
Product typeContactor
Current50 A
Poles3

Product details

The ABB AF30-30-00-12 is a 3-pole IEC contactor rated for 50 A continuous current at 600 VAC. The coil accepts 48-130 V AC or DC, which simplifies panel wiring when both supply types are present — no separate coil-supply transformer needed for mixed-voltage control circuits.

Coil and control

The wide-range coil (48-130 V AC/DC) holds in across the full band, so a sag to 48 V won't drop the contactor out. That matters on lines with long cable runs or shared control transformers where voltage drop is a known variable. The AF-Line series uses an electronic coil interface that draws minimal inrush — no separate coil suppression required for most PLC outputs.

MPN
AF30-30-00-12
