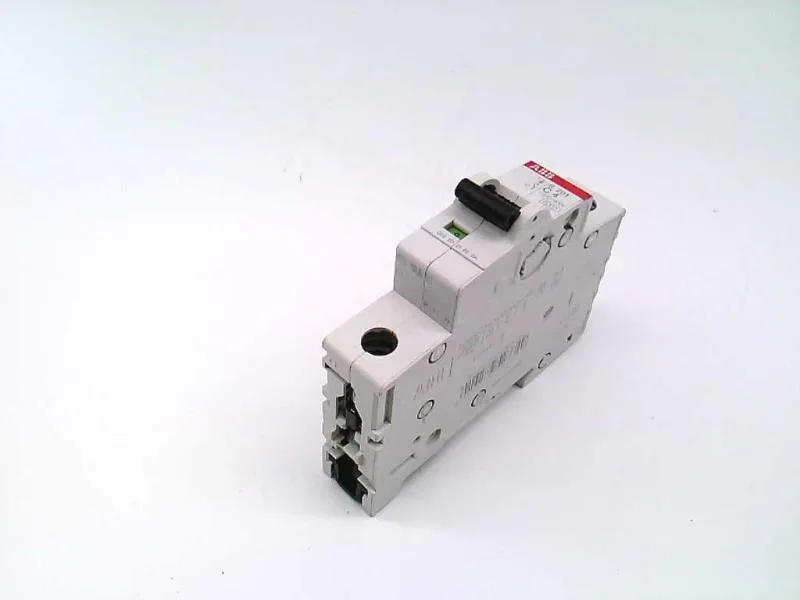

ABB S201-C4 — 1-Pole MCB (DIN Rail)

ABB S201-C4 Miniature Circuit Breaker, 4A, 1P, C Curve

MPNS201-C4

ABB S201-C4, miniature circuit breaker, 1 pole, 4 A, C curve, DIN rail mount, 277 VAC, 6 kA interrupting rating, UL 1077.

$4.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S201-C4 — Specifications
ParameterValue
Amps4
TypeTrip Curve C
Poles1
MountingDIN Rail
Volts AC277
Breaking capacity6 kA

Product details

It carries a UL 1077 listing as a supplementary protector, so it's intended for overcurrent protection downstream of a branch-circuit protective device, not as the main service disconnect.

The single-pole width is one modular unit (17.5 mm), so it occupies minimal space in a crowded enclosure. Terminal capacity accepts up to 25 mm² conductor, which is generous for a 4 A device and simplifies daisy-chaining through the panel. The thermal-magnetic trip mechanism means no external power supply needed for the protection function — it's self-powered off the line side.

The 4 A rating governs the continuous current the breaker will carry without tripping. For a control transformer feeding a 24 VDC power supply or a bank of relay coils, size the load so the steady-state draw stays at or below 4 A. The C curve's magnetic trip threshold (5–10× In, or 20–40 A) means it will pass moderate inrush from transformer magnetizing or capacitive loads without nuisance trips, but still clears a hard short quickly.

Frequently asked questions

What is the interrupting rating of the S201-C4?

The S201-C4 has a 6 kA interrupting rating at 277 VAC. This means it can safely interrupt fault currents up to 6,000 A at its rated voltage.

What compliance documentation does ABB provide for the S201-C4?

The S201-C4 carries a UL 1077 listing as a supplementary protector. For RoHS, REACH, and IEC documentation, request the manufacturer's declaration of conformity and material compliance sheet at quote time — these are typically provided with the shipment or available on request.

Where can I buy the S201-C4 and how is it quoted?

The S201-C4 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

MPN
S201-C4
