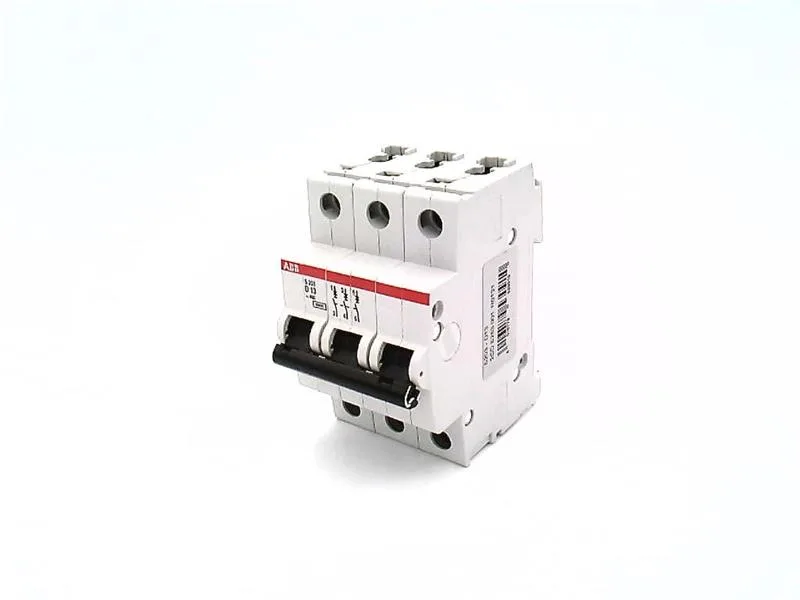

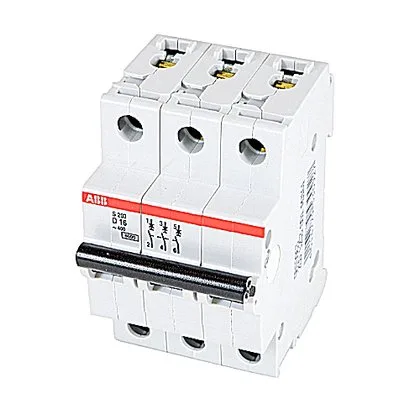

ABB S203-D13

ABB S203-D13 Miniature Circuit Breaker, 3-Pole, 10 A, Curve

MPN S203-D13

ABB S203-D13, 3-pole miniature circuit breaker, 10 A rated, Trip Curve D, 277 V AC, 10 kA interrupting capacity, DIN Rail mount.

$22.23 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S203-D13 specifications
ParameterValue
Product typeTrip Curve D
Current10 A
Breaking capacity10 kA
Poles3
MountingDIN Rail

Product details

The ABB S203-D13 is a 3-pole miniature circuit breaker rated at 10 A with a Trip Curve D characteristic, meaning it is designed to tolerate high inrush currents — typically 10 to 20 times the rated current — before tripping magnetically. This makes it the right choice for loads with a heavy starting surge, such as motors, transformers, or discharge lighting, where a Curve C breaker would nuisance-trip on startup. For a panel builder, that translates to faster assembly and easier rework: pull the clip, slide it off, replace it. The 3-pole configuration covers three-phase circuits; if you are protecting a single-phase branch, you would use a 1-pole variant from the same S200 series.

Deployment context

The 3-pole format occupies three module widths (about 54 mm) on the rail. For a panel OEM or wireman, that is a known footprint — no surprises when laying out the gland plate or calculating fill factor. The thermal-magnetic trip device means no external trip unit or power supply needed; it is self-contained and ready to wire.

MPN
S203-D13
