That curve C means it holds up to 5–10× rated current for short periods — standard for motor and transformer inrush on a general-purpose distribution panel, but not for pure resistive loads where a B curve would trip faster on a small overcurrent. Interrupting capacity is 6 kA at 277 VAC and 10 kA at 125 VDC. The AC figure tells you it handles fault currents up to 6,000 A on a 277 V line — enough for most sub-distribution boards fed from a transformer of 100 kVA or so. The DC rating at 125 V is higher because DC arcs are harder to extinguish; 10 kA gives a solid margin for battery-bank or UPS output circuits.

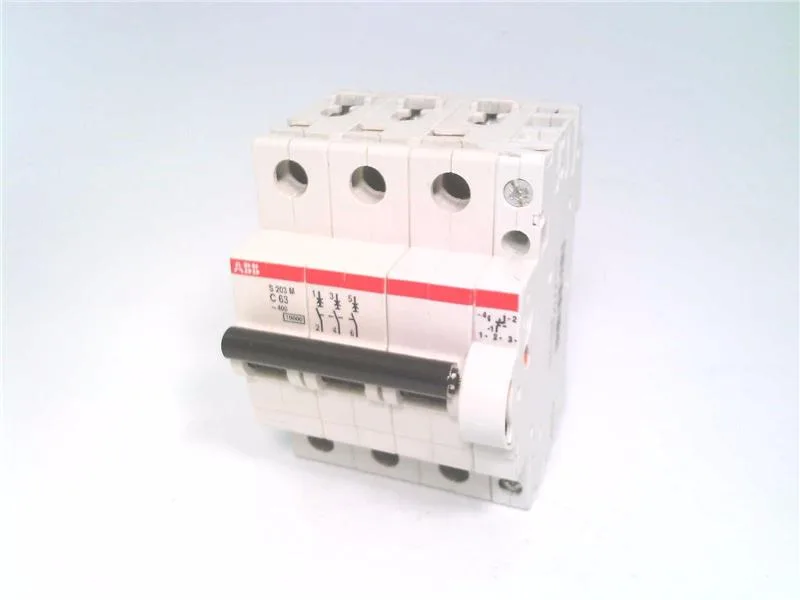

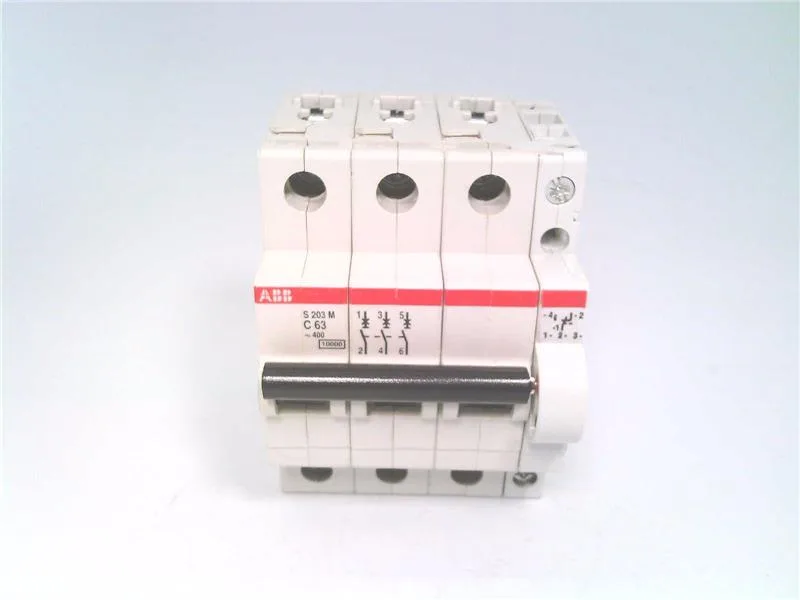

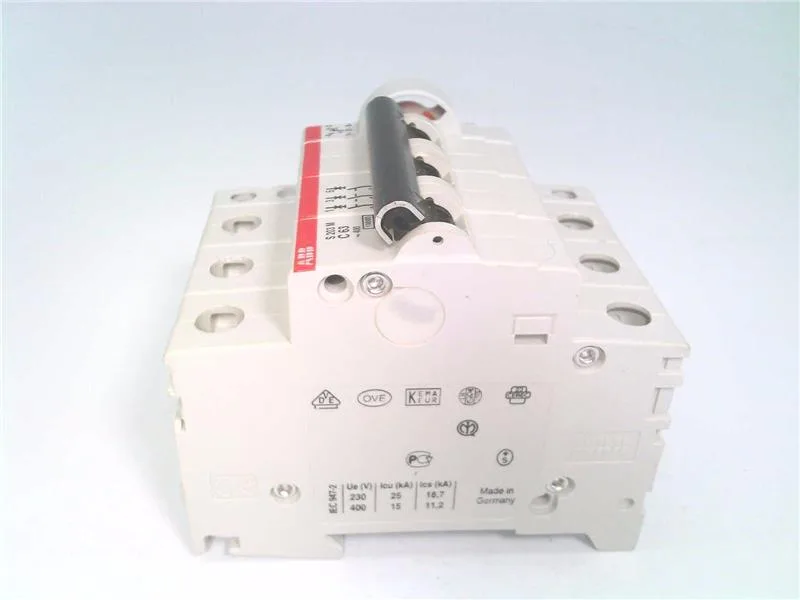

ABB S203M-C63 S200M MCB, 63 A, Curve C, 3-Pole, DIN Rail
ABB S200M series miniature circuit breaker, order code S203M-C63, 63 A, trip curve C, 3-pole, DIN rail mount, 6 kA interrupting at 277 VAC / 10 kA at 125 VDC.
Specifications
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Parameter | Value |
|---|---|
| Voltage (AC) | 277 |
| Current (A) | 63 |
| Parameter | Value |
|---|---|
| Interrupting rating (AC) | 6 kA |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Type | Trip Curve C |
| Volts DC | 125 |
| Interrupt rating DC | 10 kA |
Product details
Frequently asked questions
What is S203M-C63's listed amps and trip curve?
63 A, trip curve C, 3-pole. Curve C trips between 5× and 10× rated current, which suits motor and transformer branch circuits.
Will S203M-C63 drop into a panel specified around S203M-C50 without rewiring?
Yes — same 3-pole DIN-rail footprint, same voltage ratings, same interrupting capacity. The only difference is the current rating: 63 A vs 50 A. If the panel bus and downstream conductors are sized for 63 A, it's a direct swap.
Where can I buy S203M-C63 and how is it quoted?
Sourced and quoted to order against an RFQ through independent industrial-automation distribution. Availability and current pricing are confirmed at quote time — no stock count or price published here.
