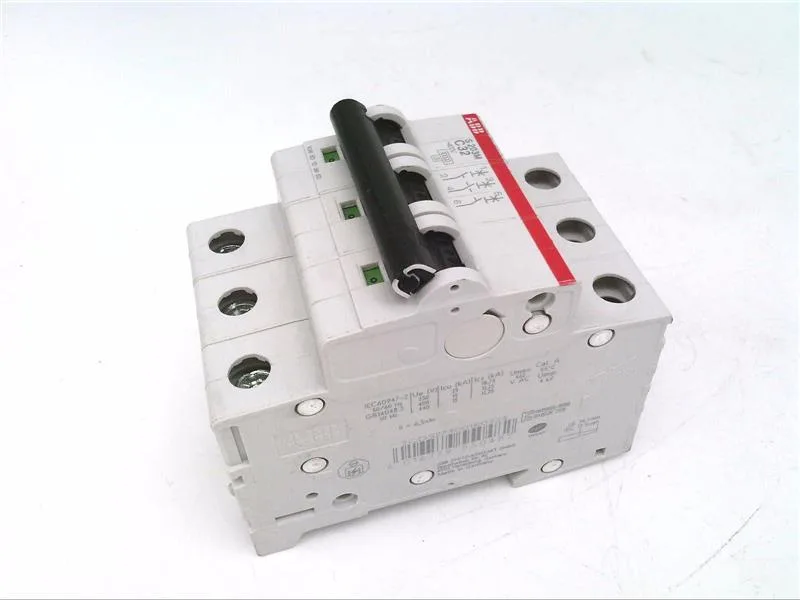

ABB S200M series, S203M-C32, 3-pole miniature circuit breaker, 32 A, Trip Curve C, DIN rail mount, 277 VAC / 125 VDC.
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Parameter | Value |
|---|---|
| Voltage (AC) | 277 |
| Current (A) | 32 |
| Parameter | Value |
|---|---|
| Interrupting rating (AC) | 6 kA |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Type | Trip Curve C |
| Volts DC | 125 |
| Interrupt rating DC | 10 kA |

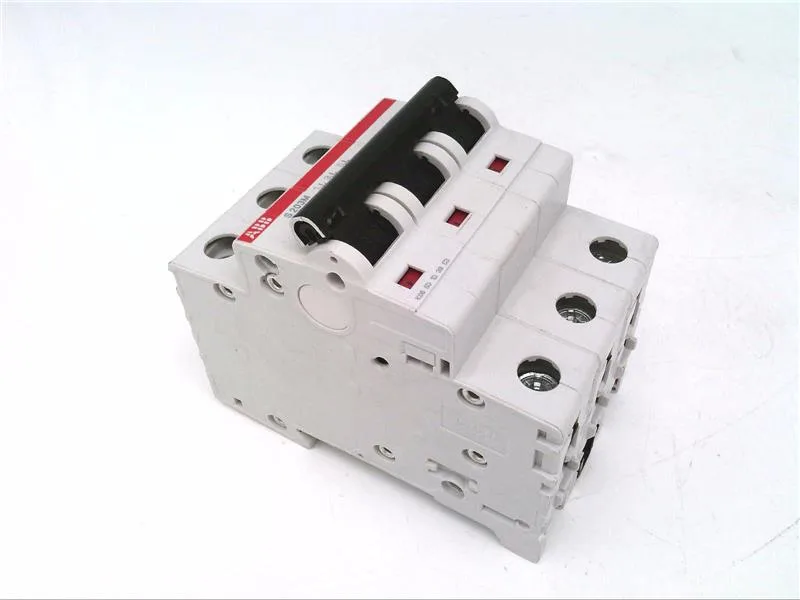

ABB S203M-C32 — 3-pole MCB from the S200M family. 32 A, Trip Curve C. Snaps onto DIN rail, rated 6 kA interrupting at 277 VAC and 10 kA at 125 VDC.
Same footprint and interrupting ratings as the S203M-C50; only the amp rating differs. If a panel was specced around the C50, the C32 drops straight in on the same DIN rail, same busbar pitch — no rewiring. The 32 A limit governs the load circuit, not the enclosure or termination.
DIN-rail mount, standard 3-module width.
The S203M-C50 is the 50 A sibling in the same S200M family — same poles, same curve, same interrupting ratings. It bolts into the same DIN slot and busbar. The C32 is functionally identical except for the 32 A current rating.
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
