1SVR427057R0000
ABB
750–3000 WIP20CP-T
Ref. price$647.87 – $1,257.07
Lead time on requestGet quote
CR-range Interface Relay
61 variants · ABB
About the CR-range Interface Relay
The ABB CR-range Interface Relay series groups 61 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by depth, height and insulation voltage ui, so you can match the exact depth your application requires using the selection guide below.
Select a variant by
- Depth
- 57.5 mm · 103.7 mm · 119 mm · 121 mm · 123.6 mm · 136 mm · 154 mm
- Height
- 85.6 mm · 90 mm · 91 mm · 123.6 mm · 129.4 mm · 131 mm
- Insulation voltage ui
- 300 V · 500 V
- IP rating
- IP20 · IP20 / IP50
- Width
- 22.5 mm · 40 mm · 40.5 mm · 53 mm · 63.2 mm · 74 mm · 82 mm · 83 mm · 150 mm · 175 mm · 276 mm
- Output signal
- Adjustable · Fixed
- Power
- 25 W · 30 W · 120 W · 240 W · 480 W · 960 W
Variant comparison

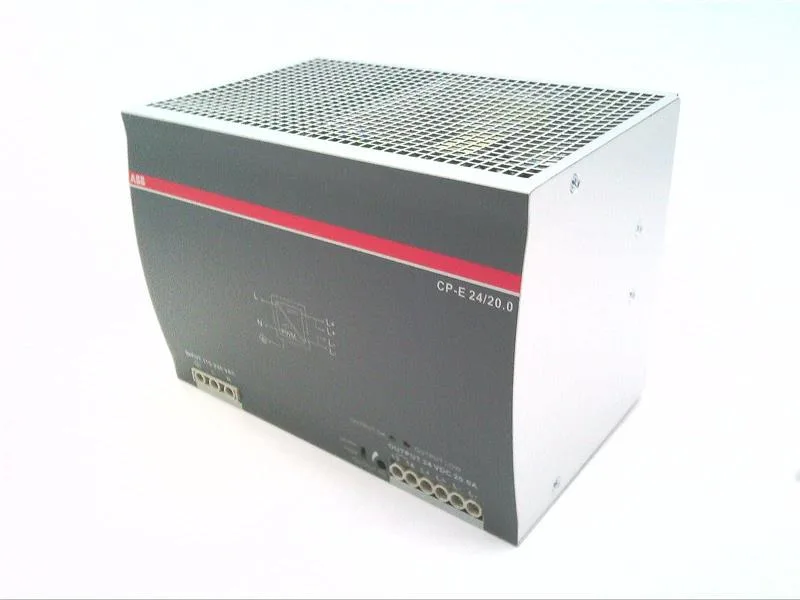

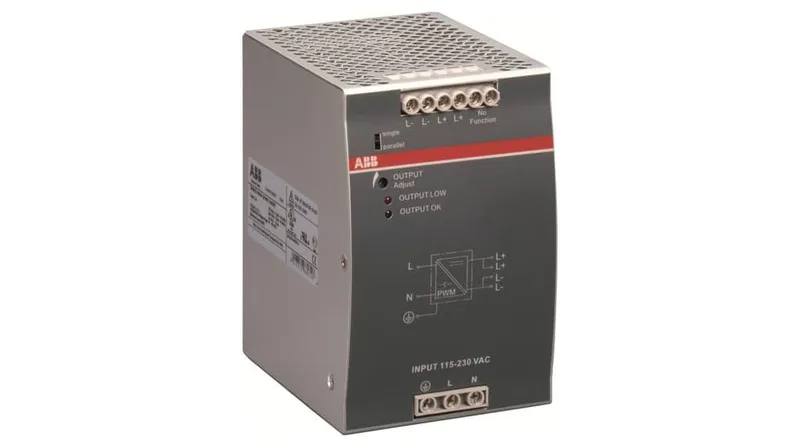

| Parameter | 1SVR427057R0000 | 1SVR427036R0000 | 1SVR427056R0000 | 1SVR427034R2000 | 1SVR427035R0000 | 1SVR427031R0000 |
|---|---|---|---|---|---|---|
| Depth | 121 mm | 123.6 mm | 119 mm | 123.6 mm | 123.6 mm | 154 mm |
| Height | 131 mm | 123.6 mm | 131 mm | 123.6 mm | 123.6 mm | 90 mm |
| Insulation voltage ui | 500 V | 300 V | 500 V | 300 V | 300 V | 300 V |
| IP rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Width | 276 mm | 175 mm | 150 mm | 83 mm | 83 mm | 40.5 mm |
| Output signal | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Fixed |
| Power | 960 W | 480 W | 480 W | 240 W | 240 W | 30 W |
Request a quote on any CR-range Interface Relay part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
