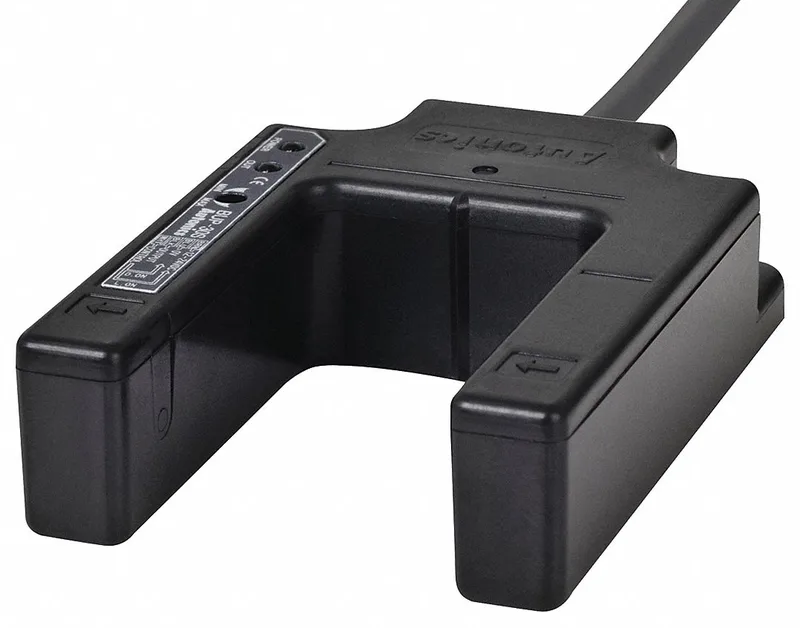

Autonics BUP-50S-P
MPNBUP-50S-P
AUTONICS Photoelectric Sensor: Non-Terminated Cable, 5 - Pin Connector, 12-24V DC, PNP, DC-Only
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | BUP |
Safety & Performance
| Parameter | Value |
|---|---|
| Response time | 1 msec |
| Switching frequency | 55 Hz |
Sensing & Detection
| Parameter | Value |
|---|---|
| Sensing distance, max. | 50 mm |
I/O
| Parameter | Value |
|---|---|
| Output circuit type | PNP |
Electrical
| Parameter | Value |
|---|---|
| Load current, max. | 30 mA |
Mechanical
| Parameter | Value |
|---|---|
| Body material | Plastic |
| Overall width | 78 mm |
| Overall height | 78 mm |
| Overall depth | 20 mm |
| Sensor body style | U-Slot |
Environmental
| Parameter | Value |
|---|---|
| IP rating | IP66 |
| NEMA enclosure rating | No Enclosure |
| Operating temperature, max. | 140 °F |
| Operating temperature, min. | 14 °F |
Approvals
| Parameter | Value |
|---|---|
| Compliance standards | CE; EAC; RoHS; UKCA |
MPN
BUP-50S-P
