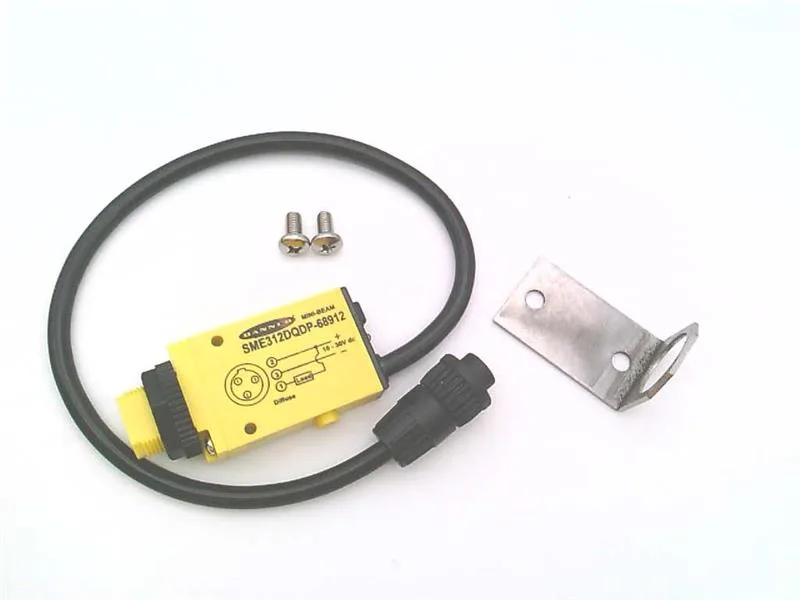

Banner Engineering SME312DQDP-68912
MPNSME312DQDP-68912
SME312DQDP-68912 12 IN PIGTAIL 3
$270.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | MINI-BEAM® |
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Diffuse |
| Sensing distance | 14.961" (380mm) |
| Response time | 500µs |
| Light source | Infrared LED |
Output
| Parameter | Value |
|---|---|
| Output configuration | NPN - Dark-ON/Light-ON |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -20°C ~ 70°C |
Other specifications
| Parameter | Value |
|---|---|
| Adjustment type | Teaching Method |
| Supply voltage | 10V ~ 30V |
| IP rating | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13, IEC IP67 |
MPN
SME312DQDP-68912
