Delta VFD037EL43A

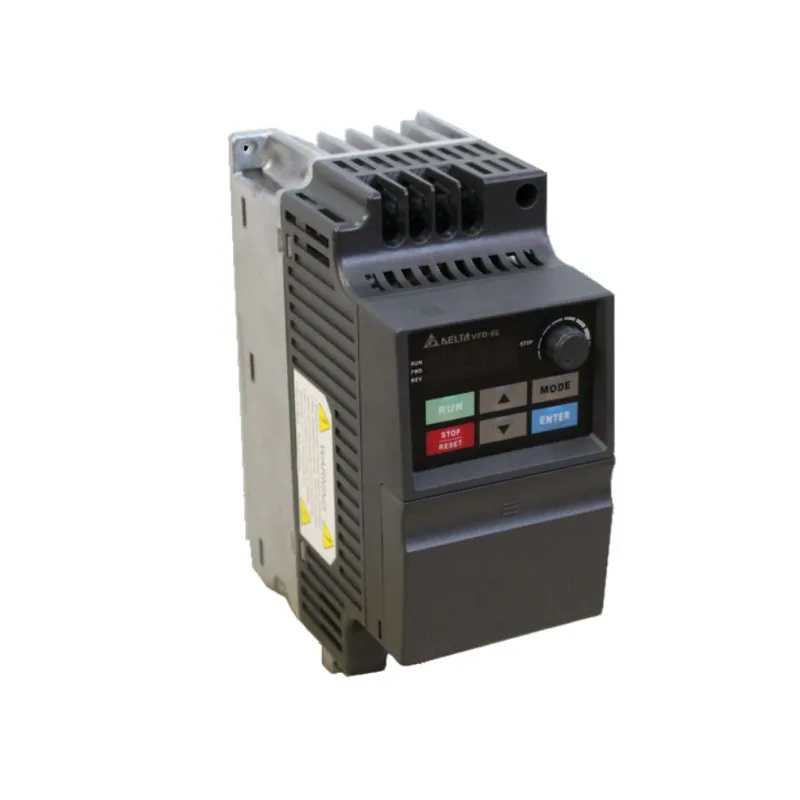

Delta VFD037EL43A AC Drive, 5 HP / 3.7 kW, 460 V 3-phase

MPN VFD037EL43A

Delta VFD037EL43A sensorless vector AC micro drive, 5 HP / 3.7 kW, 460 V 3-phase input, 8.2 A output, IP20.

$298.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

VFD037EL43A specifications
ParameterValue
Product typeSensorless Vector AC Micro Drive
IP ratingIP20
Weight1.7 kg
Cooling methodFan Cooled

Product details

What it is and where it goes

Delta VFD037EL43A is a sensorless vector AC micro drive in the variable-frequency-drive class — a compact unit that converts a fixed mains supply into a variable-frequency, variable-voltage output to control the speed and torque of a three-phase induction motor (cite: cite:). It maps to the AC Drive (VFD) 480 V family, with a 5 HP / 3.7 kW motor rating and a 460 V three-phase input (cite: cite:). The 8.2 A rated output current and 6.8 kVA output capacity are the values that govern motor pairing — sizing the drive to a motor nameplate current at or below 8.2 A continuous keeps operation inside the thermal envelope, with the standard drive (A-version) configuration supporting general-purpose applications (cite: cite: cite:).

Input feed and operating envelope

The input stage is rated 9.0 A on a 1-phase 200–240 V, 50/60 Hz feed with ±10% voltage tolerance (342–528 V noted across the broader 480 V class window) and ±5% frequency tolerance (47–63 Hz), so the upstream breaker and feeder need to be sized for that continuous input current under worst-case line drop, not just the motor full-load amps (cite: cite: cite: cite: cite:). The output frequency spans 0.1–599 Hz with a 2–12 kHz carrier; pushing carrier frequency toward the upper end quiets motor acoustic noise but the drive's continuous output current derates proportionally, so the 8.2 A figure only holds at the lower carrier settings (cite: cite: cite:).

Supply posture and cross-reference

Within the same Delta EL-series family, lower-power 230 V single-phase units such as VFD015EL21W (2 HP / 1.5 kW, 7.5 A) and VFD022EL21W (3 HP / 2.2 kW, 11.0 A) cover the smaller motor ratings, while VFD002EL43W sits in the same 460 V three-phase input class at a lower output current (5.5 A) — these are series siblings for adjacent horsepower slots, not pin-for-pin drop-ins for this 8.2 A / 5 HP position (cite: cite: cite:).

MPN
VFD037EL43A
