Festo ADN-50-50-I-PPS-A-R3
MPNADN-50-50-I-PPS-A-R3

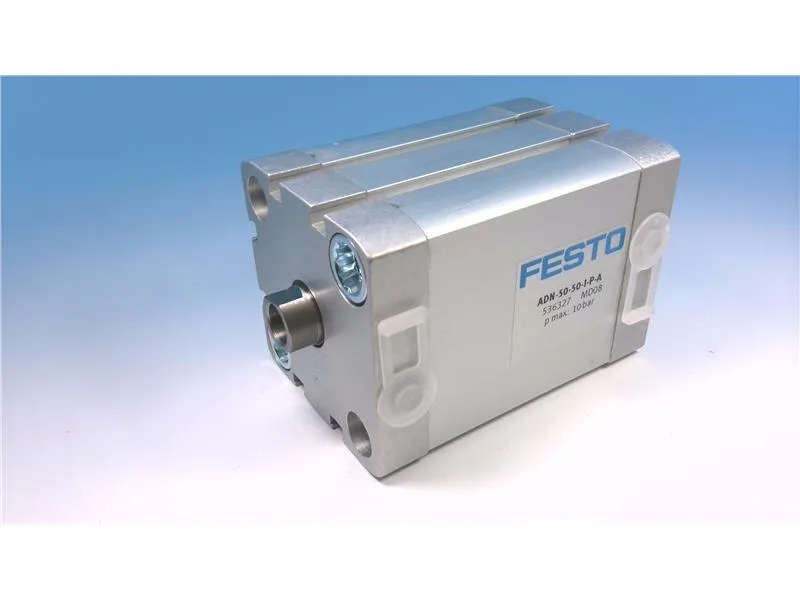

FESTO ADN-50-50-I-PPS-A-R3 COMPACT CYLINDER
$95.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | ADN-50-50-I-PPS-A-R3 |
Configuration
| Parameter | Value |
|---|---|
| Mode of operation | Double-Acting |
| Type | Double-Acting Compact Cylinder |
Dimensions
| Parameter | Value |
|---|---|
| Piston diameter | 50 mm |
| Stroke length | 50 mm |
Pneumatic
| Parameter | Value |
|---|---|
| Operating pressure | 0.6 … 10 bar |
| Pneumatic connection | G 1/8 |
| Cushioning | Pneumatic cushioning, self-adjusting at both ends |
Mechanical
| Parameter | Value |
|---|---|
| Piston rod thread | Female thread |
| Position sensing | Via proximity sensor |
Environmental
| Parameter | Value |
|---|---|
| Temperature | -20 … 80 °C |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.72 kg |
| Variant | High corrosion protection |
| Condition | New |
| Shelf no. | 200603 |
| Piston rod | High-alloy steel |
| Materials ,,Cylinder tube | Aluminium wrought alloy Smooth anodised |
MPN
ADN-50-50-I-PPS-A-R3
