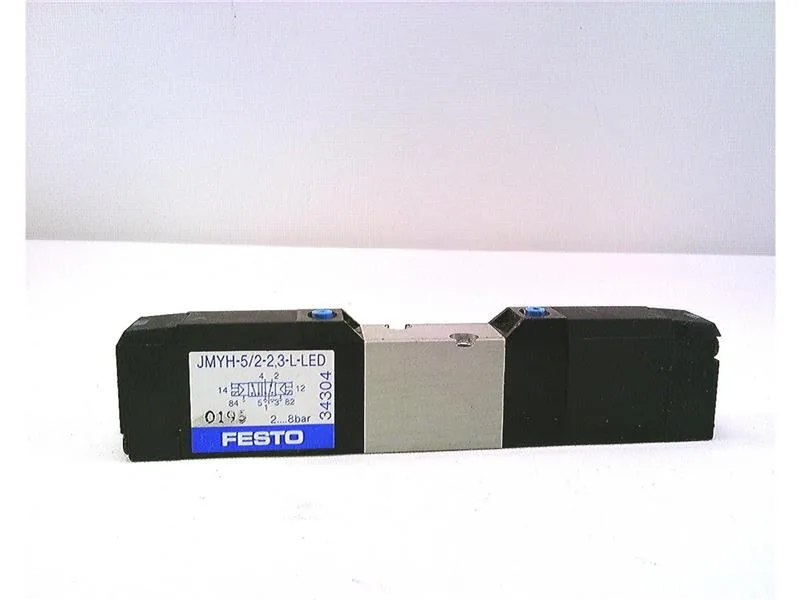

Festo JMYH-5/2-2,3-L-LED
MPNJMYH-5/2-2,3-L-LED
FESTO 34304 SOLENOID VALVE
$240.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| IP rating | IP40 |
| Duty_cycle | 100% |
| Frame_size | 2.3 mm |
| Product type | Solenoid valve |
| Valve_function | 5/2 |
| Design structure | Piston slide |
| Operating medium | Dried compressed air, lubricated |
| Type of piloting | Piloted |
| Medium temp max | -5 |
| Enclosure_material | Aluminium die cast |
| Operating_pressure | 2 … 8 bar |
| Pneumatic_connection | Sub-base |
| Switching time reversal | 7 ms |
| Characteristic coil data 24V DC | 1,8 W |
| Bistable standard nominal flow rate | 180 l/min |
MPN
JMYH-5/2-2,3-L-LED
