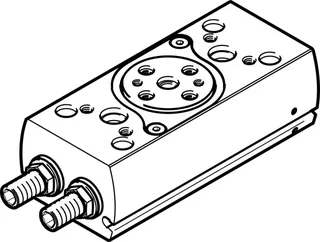

DRRD-10-180-FH-PA
Festo
DRRDBulkRotary Actuator
Ref. price$427.10 – $561.81
Lead time on requestGet quote
Festo DRRD Pneumatic Cylinders Series
9 variants · Festo
About the Festo DRRD Pneumatic Cylinders Series
The Festo DRRD Pneumatic Cylinders Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common package of Bulk, product type of Rotary Actuator and temp operating max of 60 °C. Variants differ by connection method and operating pressure, so you can match the exact connection method your application requires using the selection guide below. All listed Festo DRRD Pneumatic Cylinders Series part numbers are active and orderable.
Select a variant by
- Connection method
- G1/8 · M3 · M5
- Operating pressure
- 29 to 145 PSI (2 to 10 bar) · 44 to 116 PSI (3 to 8 bar)
Shared specifications
- Package
- Bulk
- Product type
- Rotary Actuator
- Temp operating max
- 60 °C
- Temp operating min
- -10 °C
Variant comparison
| Parameter | DRRD-12-180-FH-Y9A | DRRD-16-180-FH-Y9A | DRRD-20-180-FH-Y9A | DRRD-12-180-FH-PA | DRRD-10-180-FH-PA | DRRD-8-180-FH-PA |
|---|---|---|---|---|---|---|
| Connection method | M5 | M5 | M5 | M5 | M3 | M3 |
| Operating pressure | 29 to 145 PSI (2 to 10 bar) | 29 to 145 PSI (2 to 10 bar) | 29 to 145 PSI (2 to 10 bar) | 44 to 116 PSI (3 to 8 bar) | 44 to 116 PSI (3 to 8 bar) | 44 to 116 PSI (3 to 8 bar) |
Request a quote on any Festo DRRD Pneumatic Cylinders Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
