KSDB1110MP
Littelfuse
< 24 VKSDBBulk
Ref. price$69.25
Lead time on requestGet quote

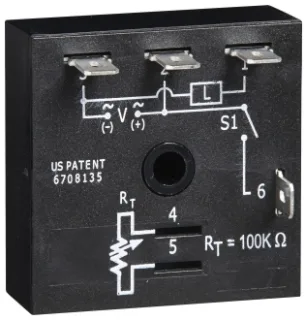

Littelfuse KSDB Solid State Relays Series
12 variants · Littelfuse
About the Littelfuse KSDB Solid State Relays Series
The Littelfuse KSDB Solid State Relays Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Chassis Mount, package of Bulk and timing initiate method of Input Voltage, Trigger Signal. Variants differ by delay time, supply voltage and timing adjustment method, so you can match the exact delay time your application requires using the selection guide below. All listed Littelfuse KSDB Solid State Relays Series part numbers are active and orderable.
Select a variant by
- Delay time
- 0.1 Sec to 10 Sec · 1 Min to 100 Min · 1 Sec to 100 Sec · Fixed, 3 Min · Fixed, 5 Sec · Fixed, 10 Min · Fixed, 15 Sec · Fixed, 20 Sec · Fixed, 150 Sec
- Supply voltage
- 12 VDC · 24 VDC · 120 VAC · 230 VAC
- Timing adjustment method
- External Resistor · Fixed · Screwdriver Slot
Shared specifications
- Mounting
- Chassis Mount
- Package
- Bulk
- Timing initiate method
- Input Voltage, Trigger Signal
- Type
- Solid State Relay
Variant comparison
| Parameter | KSDB1110MP | KSDB1120SP | KSDB120P | KSDB134P | KSDB315SP | KSDB330N |
|---|---|---|---|---|---|---|
| Delay time | Fixed, 10 Min | Fixed, 20 Sec | 0.1 Sec to 10 Sec | 1 Min to 100 Min | Fixed, 5 Sec | 0.1 Sec to 10 Sec |
| Supply voltage | 12 VDC | 12 VDC | 12 VDC | 12 VDC | 24 VDC | 24 VDC |
| Timing adjustment method | Fixed | Fixed | External Resistor | Screwdriver Slot | Fixed | Screwdriver Slot |
Request a quote on any Littelfuse KSDB Solid State Relays Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
