The CP1WDA021.1 is an analogue output expansion unit for Omron CP1-series PLCs. It adds two analogue output channels to a CP1 controller, wired through screw terminals and mounted directly on the DIN rail alongside the base unit. Supply voltage range is 5 to 24 VDC, drawing power from the same bus as the CPU, so no separate power module is needed for a small-scale analogue control add-on.

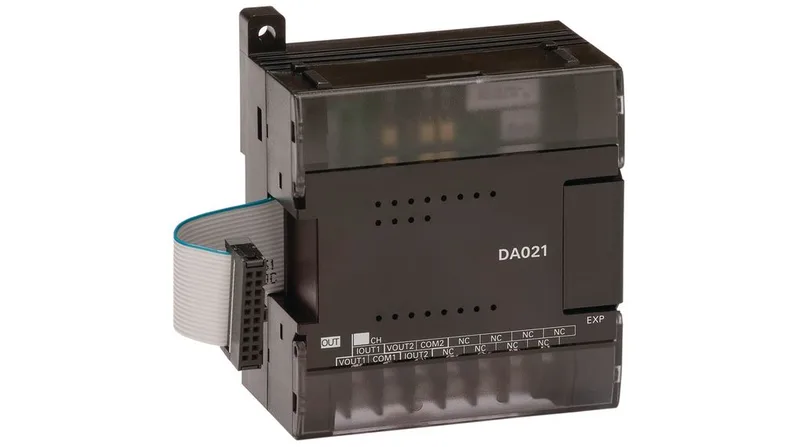

Omron CP1WDA021.1 Analogue Output Module, 2 outputs
MPNCP1WDA021.1
Omron CP1WDA021.1, Analogue Output Module, 2 outputs, DIN Rail Mount, Screw Terminal, 5–24 VDC.
$363.65Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Output data area | 2 |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail Mount |
Other specifications
| Parameter | Value |
|---|---|
| Module type | Analogue Output Module |
| Output signal | Analogue |
| Suitable for | CP1 |
| Termination type | Screw Terminal |
| Operating voltage max. - DC | 24 V |
| Operating voltage min. - DC | 5 V |
Product details
MPN
CP1WDA021.1
