What the 2NC contact configuration means for machine guarding

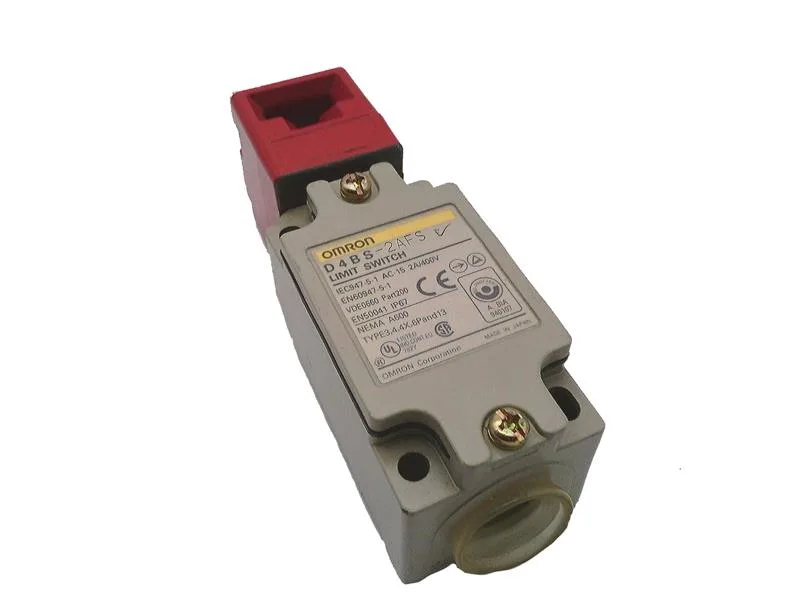

The D4BS2AFS is a safety-door switch — two normally-closed contacts open when the guard door is breached, cutting the machine's enable circuit before an operator can reach the hazard zone. The 2NC arrangement means both contacts are forced-driven: the mechanism physically pushes them open together, so a welded contact cannot hold the circuit closed — that is the core safety argument for this form factor over a simple NO door sensor.
Switching current and voltage — what 10 A at 250 V AC actually covers
10 A switching current at 250 V AC is the AC-15 rating (IEC 60947-5-1 utilisation category), which covers control-circuit loads up to that current — contactor coils, pilot lights, and relay logic. It is not a power-load rating; do not size it for motor inrush. The voltage ceiling of 250 V AC sits comfortably below the 2.5 kV dielectric strength that the housing and contact gap sustain, so there is margin for inductive kick when the contacts interrupt a coil.
IP67 aluminium body — where this switch lives on the line
IP67 means the switch body is dust-tight and survives temporary immersion — the O-ring and cable gland compression joint are the sealing interfaces. In a food-processing or pharmaceutical line the aluminium housing tolerates the caustic washdown agents that would corrode a mild-steel body. The 43 mm depth, 40 mm width, and 111.5 mm height fit a standard 40 mm DIN-rail cutout or a bolted panel face; the key actuator head rotates to four positions so the entry orientation adapts to the door hinge side without a custom bracket.
Mechanical vs electric service life — the number that governs the maintenance cycle
Mechanical service life is 1,000,000 cycles; the electrical service life is listed separately at 500,000 cycles. That 2:1 ratio is the critical design parameter — the contact surfaces wear from arc erosion on every make-and-break event, and at 10 A the erosion rate doubles the mechanical wear. Budget the electrical service life into the preventive-maintenance interval for the guarded door; the mechanical stop will outlast the contacts by roughly 2×. When the 500,000-cycle mark approaches, replace the switch rather than attempt contact cleaning — the contact spring preload degrades irreversibly under arc heat.
Sourcing posture and series status
The D4BS series carries a mature lifecycle designation — Omron continues to produce and support it, and the part is available through independent distribution quoted to order against the BOM quantity. Availability and current lead times are confirmed at RFQ. No official successor or cross-reference order code appears in the manufacturer record for this specific variant.
