The E2A-S08LN04-M5-B2: Supply voltage spans 12 to 24 VDC, and the stainless steel case holds up in washdown or abrasive environments. Connection is via an M8 3-pin connector—no cable gland to terminate. Sourcing is straightforward: the part is active, so it can be quoted against an RFQ for the BOM line. Confirm the M8 mounting hole or threaded hole dimensions match your bracket layout.

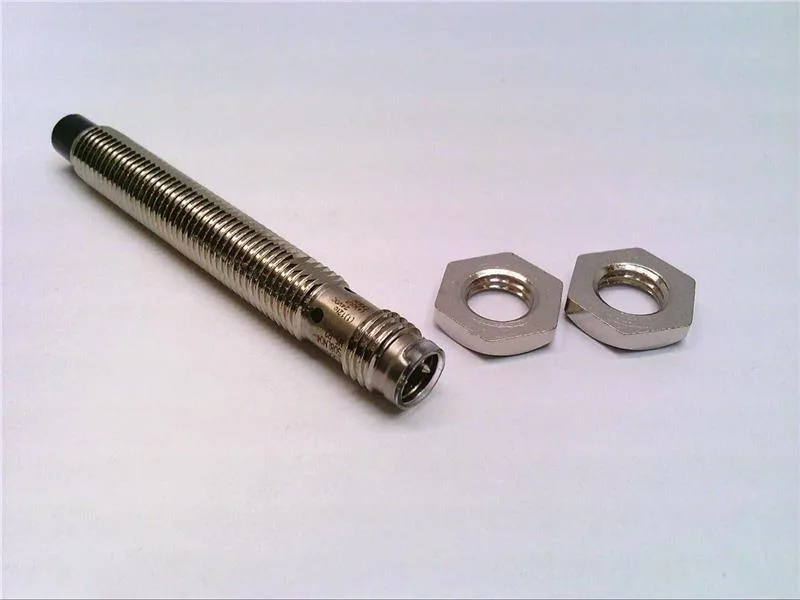

Omron E2A-S08LN04-M5-B2 Inductive Proximity Sensor, M8, PNP,
MPNE2A-S08LN04-M5-B2
Omron E2A Series, DC 3-wire Long Barrel Proximity Sensor, M8 size, PNP output, unshielded, NC operation, 4 mm sensing distance, 12-24 VDC.
$21.92Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 4 mm |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 12 to 24 VDC |
| Connection / connector | M8 3-pin connector |
Mechanical
| Parameter | Value |
|---|---|
| Size | M8 |
Other specifications
| Parameter | Value |
|---|---|
| Output | PNP |
| Mounting | Bracket with 8 mm mounting hole or M8x1 threaded hole. |
| Shielded | Unshielded |
| Operation | NC |
| Case material | Stainless steel |
| Overall length | 61 |
| Threaded length | 43 |
Product details
Frequently asked questions
What is the size and output of E2A-S08LN04-M5-B2?
It is M8 size, PNP output, unshielded, normally closed, with a 4 mm sensing distance.
How is E2A-S08LN04-M5-B2 connected?
It uses an M8 3-pin connector and operates on 12 to 24 VDC supply.
MPN
E2A-S08LN04-M5-B2
