Omron E2A-S08LS02-M5-B2 — Proximity Sensors

E2A-S08LS02-M5-B2 Inductive Prox Sensor, 2mm, PNP-NC, IP69K

MPNE2A-S08LS02-M5-B2

E2A series inductive proximity sensor, M8 threaded cylinder, shielded, PNP-NC output, 2mm sensing distance.

$24.69Ref. price · indicative, final on quote
Omron E2A-S08LS02-M5-B2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2A-S08LS02-M5-B2 — Identification
ParameterValue
SeriesE2A
E2A-S08LS02-M5-B2 — Sensing
ParameterValue
Sensing distance0.079" (2mm)
ShieldingShielded
E2A-S08LS02-M5-B2 — Environmental
ParameterValue
Operating temperature range-40°C ~ 70°C
E2A-S08LS02-M5-B2 — Other specifications
ParameterValue
CaseCylinder, Threaded - M8
IndicatorLED
Output signalPNP-NC, 3-Wire
Sensor typeInductive
Material - bodyStainless Steel
Supply voltage10V ~ 32V
Termination styleConnector
IP ratingIP67, IP69K
Response frequency1.5kHz

Product details

Hands-on for the wet line

IP67/IP69K rated, so it shrugs off the washdown. 1.5 kHz response frequency keeps up at line speed for bottle presence on a high-speed conveyor. Output is PNP-NC, 3-wire, so it pulls the signal low when the target is absent. The 2mm sensing range is short but reliable for ferrous targets like can lids when mounted flush. Supply from 10 to 32 VDC, common for control cabinets. Connector termination keeps field wiring quick when a line is down.

Mounting notes

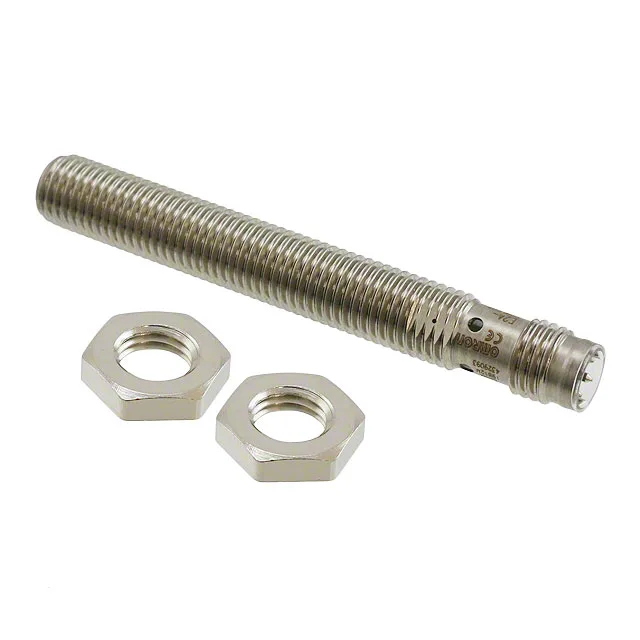

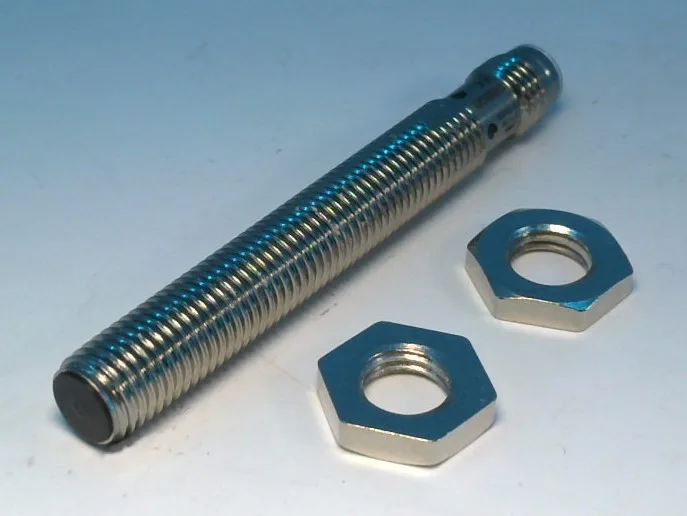

M8 threaded stainless steel body, shielded design permits flush mounting in metal. The 2mm sensing distance means target standoff must be tight. Use the included indicator LED for setup confirmation.

Frequently asked questions

What is the housing and case style of E2A-S08LS02-M5-B2?

It has a Cylinder, Threaded - M8 case style, stainless steel body, shielded.

What series does E2A-S08LS02-M5-B2 belong to?

It is part of the E2A series, which is a family of inductive proximity sensors.
