What the E3S-DCN21 covers

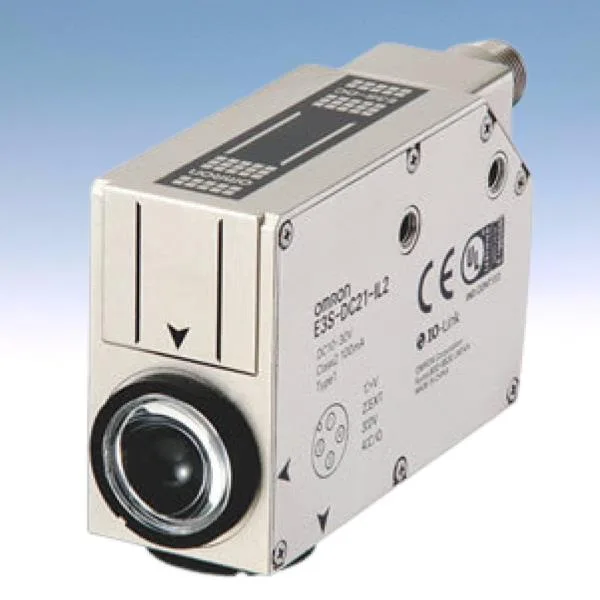

The Omron E3S-DCN21 is an active-production color mark sensor from the E3S-DC series, configured with an NPN output and a diffuse-reflective sensing method that detects color marks at distances up to 13 mm. The 10–30 VDC supply range and M12 4-pin connector simplify wiring into existing panels, and the integrated IO-Link interface lets you pull diagnostic data and reconfigure thresholds without opening the cabinet — useful for high-speed packaging or print lines where changeovers are frequent. Its zinc diecast housing with nickel-plated brass stands up to washdown environments common in food and beverage applications. ON output only when the mark is detected means this is a light-operated sensor; verify your PLC logic expects a normally-open response.
Comparing to a common alternative: E3S-CD12
The E3S-CD12 (E3S-C series) also uses diffuse sensing and NPN/PNP outputs, but its sensing distance is 2 m compared to the 13 mm of the E3S-DCN21 — a class-level difference that changes the application scope. The CD12 connects via 2 m bare wire, while the DCN21 uses an M12 connector, so rewiring the cable gland or pinout is necessary if swapping between them. The CD12 offers selectable Light On/Dark On modes, whereas the DCN21 is fixed ON-when-mark-detected. If your panel expects a dark-on signal or requires configuration on the fly, that’s a further mismatch. For a direct drop-in without rewiring or logic rework, the E3S-DCN21 is not an interchangeable substitute for the E3S-CD12 — evaluate connector type, sensing distance, and output logic before ordering.
