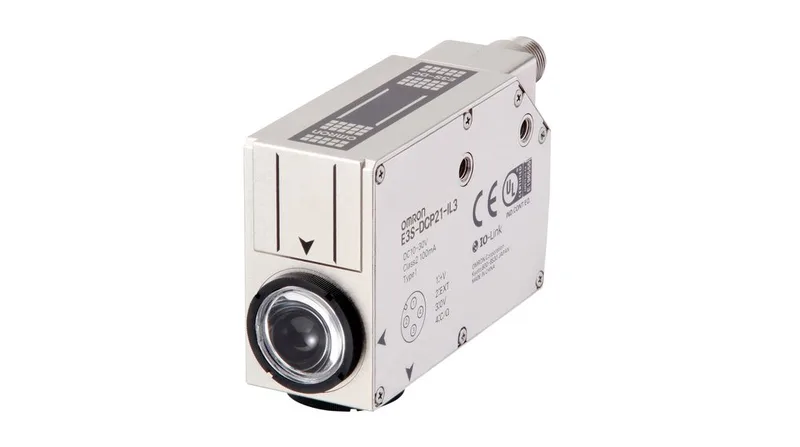

Omron E3S-DC Series, Diffuse Reflective Photoelectric Sensor, E3SDCP21IL2OMS, RGB LED, Push-Pull, 13mm, Connector M12, IP67.
| Parameter | Value |
|---|---|
| Series | E3S-DC |
| Sensor type | Diffuse Reflective Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 13 mm |
| Sensing distance, min. | 7 mm |
| Response time | 150 us |
| Light type | RGB LED |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | Push-Pull |
| Load current | 100 mA |
| Switching type | Detection-ON / Detection-OFF |
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -10 °C |
| Operating temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Length | 80.4 mm |
| Width | 53.7 mm |
| Height | 30 mm |
Fitting this sensor where an E3SCD17OMS was specified? Check dimensions: the E3S-DC is 53.7 mm wide × 30 mm high × 80.4 mm long, while the E3S-C body is 29.5 mm × 40.4 mm × 75 mm. The E3S-C uses infrared LED and NPN/PNP output; this one is RGB and push-pull. Mounting holes and sensing range (13 mm vs 2 m) are different—rewiring and a new bracket are needed.
Sensing distance is 7–13 mm (adjustable). Response time is 150 µs. IP67 rated for washdown environments.
Not without hardware changes. The E3S-DC is larger (53.7 mm wide vs 29.5 mm), uses a different mounting pattern, and the push-pull output requires different wiring than the NPN/PNP of the E3S-C. The sensing range is also much shorter (13 mm vs 2 m). A direct drop-in is not possible.
We quote this sensor against an RFQ. Current production, available through the standard Omron supply chain. Let us know the quantity and we'll confirm lead time and friend price.
