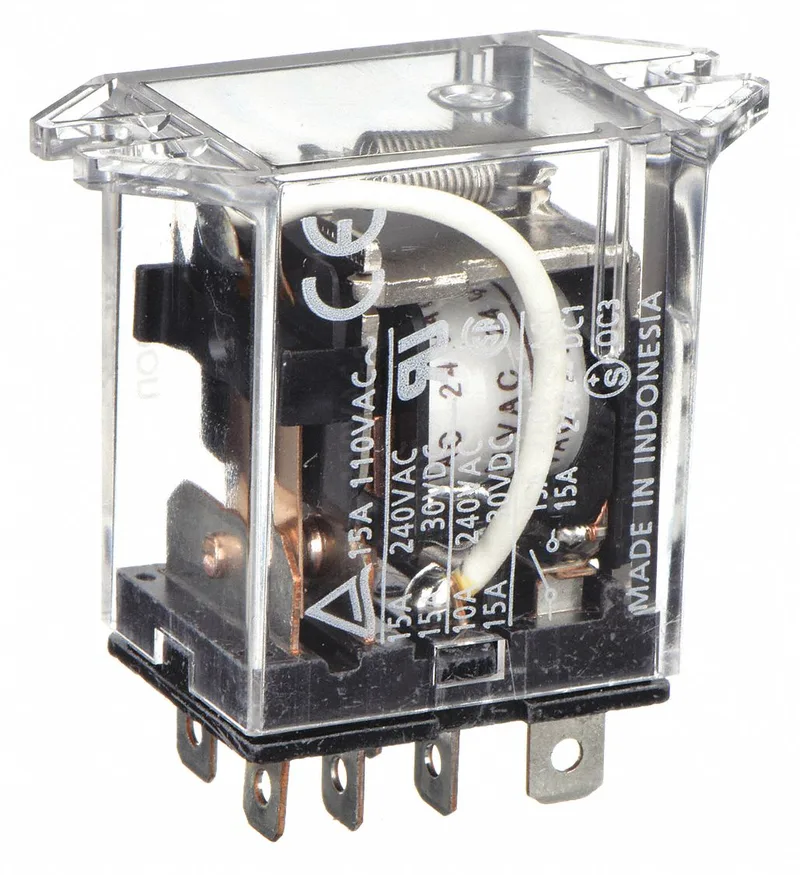

Omron LY1F-AC24
MPNLY1F-AC24
OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 15 A Current Rating, 24V AC, SPDT
$10.33 – $16.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | LY Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | SPDT |
| Contact rating (AC) | 10 A @ 120V15 A @ 120V |
| Mechanical life (operations) | 100,000,000 |
| Electrical life (operations) | 200,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC Between Coil and Contact |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Surface (Top Flange) |
| Electrical connection type | Pin |
| Number of pins/terminals | 8 |
MPN
LY1F-AC24
