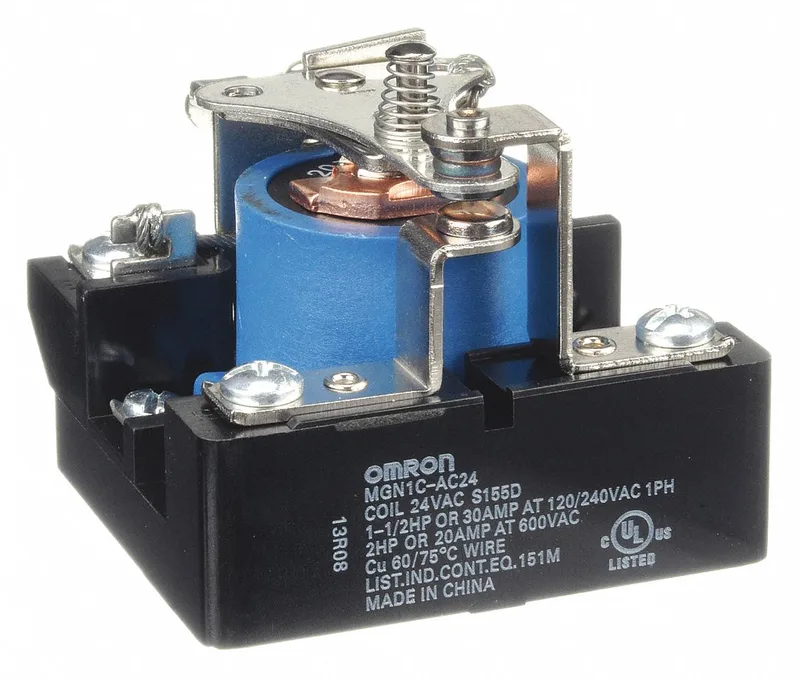

Omron MGN1C-AC24
MPNMGN1C-AC24
OMRON Open Power Relay: Surface Mounted, 30 A Current Rating, 24V AC, 5 Pins/Terminals, SPDT
$55.60 – $73.85Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MGN Power Series |
| Electrical connection type | Screw |
| Coil voltage | 24V AC |
| Coil voltage (Nominal@60Hz) | 24V AC |
| Current rating | 30 A |
| Horsepower @ 120V AC | 1-1/2 hp |
| Horsepower @ 240V AC | 2 hp |
| Contact form | SPDT |
| Relay mounting style | Surface |
| Number of pins (Terminals) | 5 |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 1,000,000 |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Status indicator | No Indicator |
| Contact rating | 20 A @ 600V30 A @ 240V |
| Dielectric strength | 2,200 Vrms Between Contacts; 2,200 Vrms Between Other Elements |
| Push-To-Test button | No Test Button |
MPN
MGN1C-AC24
