Omron MY2-US-SV
MPNMY2-US-SV

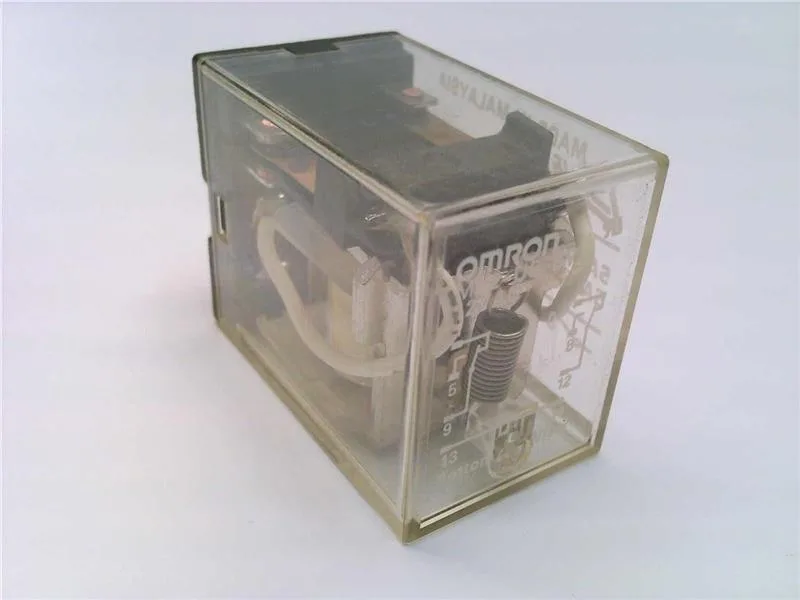

OMRON MY2-US-SV MINIATURE POWER RELAY
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact configuration | DPDT |
Function & Indication
| Parameter | Value |
|---|---|
| Type | Miniature Power Relay |
Other specifications
| Parameter | Value |
|---|---|
| Model | MY2-US-SV |
| Weight | 0.035 Kg |
| Condition | New |
| Shelf no. | 210210 |
| Dimensions | 20 X 34 X 27 mm |
| Voltage | 24 VDC |
| Coil resistance | 662 Ω |
| Contact current | max. 5 A |
| Contact voltage | max. 250 VAC, 125 VDC |
| Contact materials | Ag |
| Power consumption | Approx. 0.9 W |
| Contact rated load | 5 A at 220 VAC, 5 A at 24 VDC |
| Ambient operating temperature | −55 … 70°C |
| Coil inductance armature OFF (ON) | 3.2/5.72 H |
MPN
MY2-US-SV
