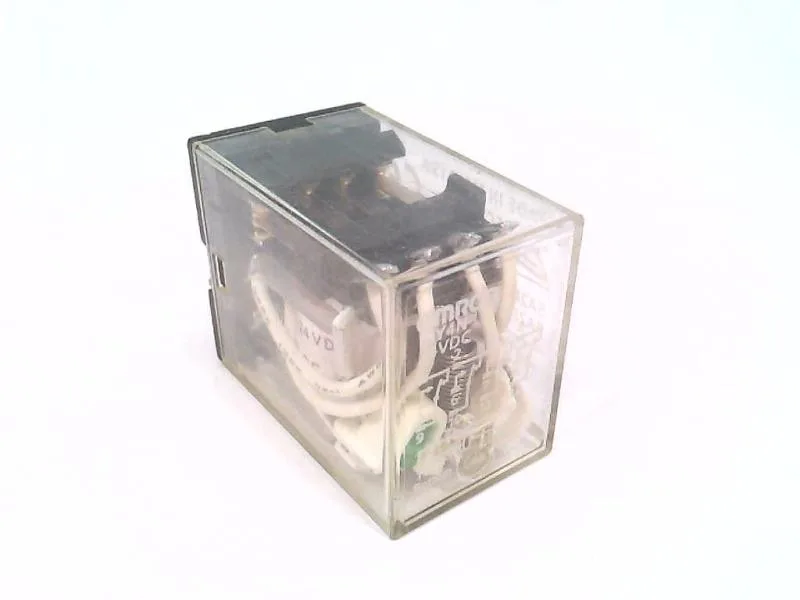

Omron MY4N-DC24
MPNMY4N-DC24
ICE CUBE RELAY 24V DC|ORN MY4N-DC24 ICE CUBE RELAY 24V DC COIL DPDT 5A
$2.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Release time | 20 ms max. |
| Operation time | 20 ms max |
| Contact resistance | 50 mO max. |
| Insulation resistance | 100 MO min. |
| Dimensions (HxWxD), approx | 2.15 x 2.8 x 3.6 cm |
| Shock resistance (Malfunction) | 200 m/s2 |
| Shock resistance ( destruction) | 1,000 m/s2 |
| Maximum operating frequency (Mechanical) | 18,000 operations/h |
| Maximum operating frequency (Rated load ) | 1,800 operations/h |
| Vibration resistance ( destruction (Malfunction)) | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) |
MPN
MY4N-DC24
