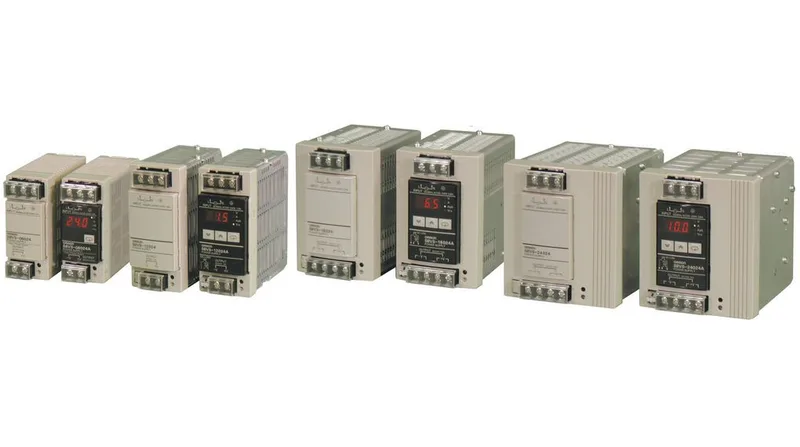

Omron S8VS03024.1
MPNS8VS03024.1
DIN Rail Power Supply 86% 24V 1.3A 30W Adjustable S8VS
$144.20 – $154.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VS |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 264 V |
| Input voltage min. | 85 V |
| Insulation voltage | 3 kV |
| Input voltage nominal | 100 ... 240 VAC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 1.3 A |
| Rated power | 30 W |
| Operating temperature max. | 60 °C |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| Operating temperature min. | -10 °C |
| Depth | 100.4 mm |
| Width | 22.5 mm |
| Height | 94.6 mm |
| MTBF | 135000 h |
| Outputs | 1 |
| Efficiency | 86 % |
| Ripple & noise | 150 mV |
MPN
S8VS03024.1
