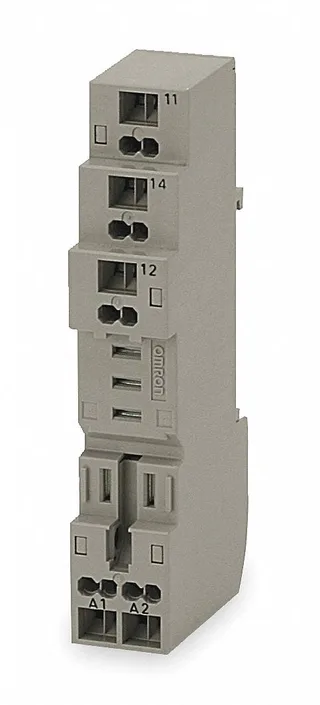

P2RF-05-S
Omron
10–30 ASPDT5
Ref. price$1.55 – $6.38
Lead time on requestGet quote
Omron P2RF Relay Sockets Series
11 variants · Omron
About the Omron P2RF Relay Sockets Series
The Omron P2RF Relay Sockets Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by height, width and contact form, so you can match the exact height your application requires using the selection guide below.
Select a variant by
- Height
- 3.62 in · 90 mm · 91.948 mm · 96 mm
- Width
- 0.71 in · 15.5 mm · 18.034 mm
- Contact form
- DPDT · SPDT
- Current
- 5 A · 10 A
- Depth
- 1.28 in · 32.512 mm
- Mounting
- DIN Rail · DIN-Rail &, Surface · Front mount
- Pin count
- 5 · 8
- Length
- 52.1 mm · 52.4 mm
Variant comparison

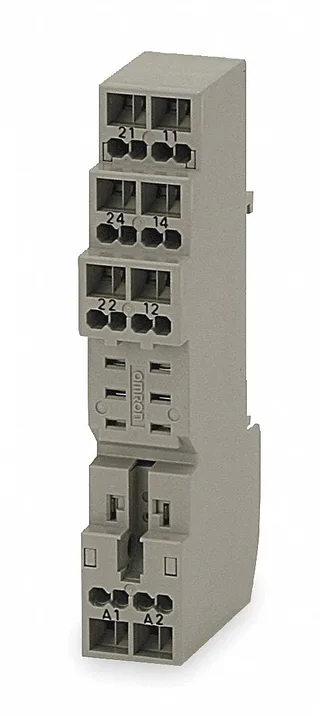

| Parameter | P2RF-05-S | P2RF-08-S | P2RF08S | P2RF08PUBYOMB | P2RF05PUBYOMB |
|---|---|---|---|---|---|
| Height | 3.62 in | 3.62 in | 91.948 mm | 96 mm | 90 mm |
| Width | 0.71 in | 0.71 in | 18.034 mm | 15.5 mm | 15.5 mm |
| Contact form | SPDT | DPDT | DPDT | — | — |
| Current | 10 A | 10 A | 5 A | — | — |
| Depth | 1.28 in | 1.28 in | 32.512 mm | — | — |
| Mounting | — | — | DIN-Rail &, Surface | DIN Rail | Front mount |
| Pin count | 5 | 8 | 8 | — | — |
| Length | — | — | — | 52.4 mm | 52.1 mm |
Request a quote on any Omron P2RF Relay Sockets Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
