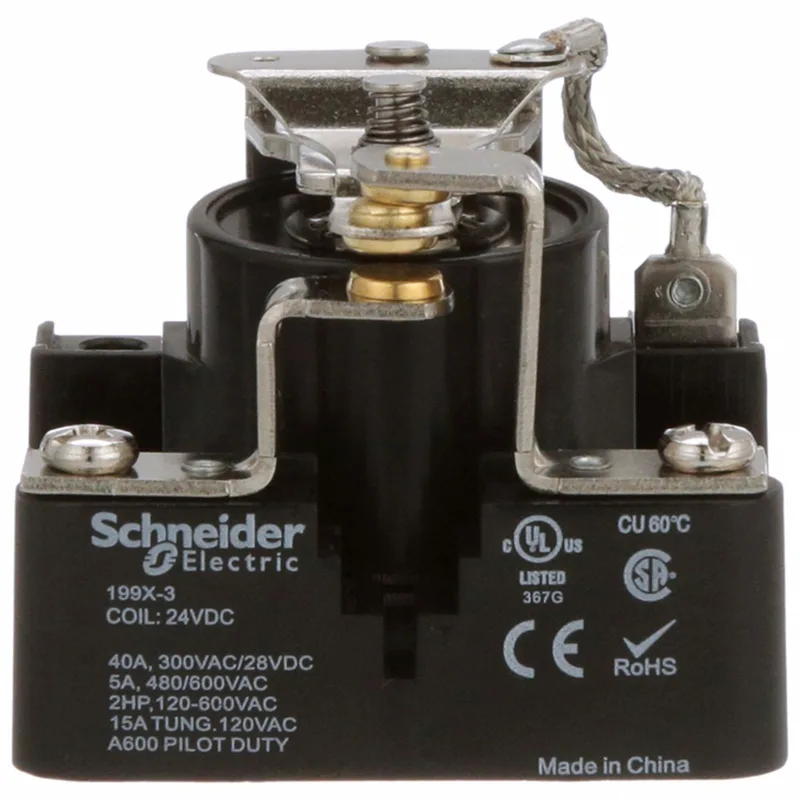

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 24V DC, 5 Pins/Terminals, SPDT
$49.23 – $70.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Cover type | Open cover |
| Product type | Power relay |
| Input voltage | 24 V DC |
| Voltage range | 0.85...1.1 Un AC/DC |
| Maximum switching voltage | 600 V DC |
| Voltage | 6...600 V AC 50-60 Hz 6...250 V DC |
| Drop-out voltage threshold | >= 0.1 Uc AC/DC |
| Input current | 40 A |
| Short circuit current | 3 kA |
| Minimum switching current | 1000 mA 5 V AC/DC |
| Rated operational current | 40 A at 300 V AC (on resistive load) conforming to UL 40 A at 28 V DC (on resistive load) conforming to UL 5 A at 480 V AC (on resistive load) conforming to UL 5 A at 600 V AC (on resistive load) conforming to UL 15 A at 120 V AC (tungsten filament) conforming to UL |
| Motor power | 2 hp 120...600 V AC 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Power consumption in | 10 VA AC |
| Average pole impedance | 4 mOhm |
| Wire strip length | 0.3 in (8 mm) |
| Connections terminals | screw terminal - 1 x 0.009 in² (6 mm²) |
| Terminal tightening torque | 10.6...15.05 lbf.in (1.2...1.7 N.m) |
| Contacts material | Silver alloy contacts |
| Electrical durability | 100000 cycles resistive DC load |
| Category | US10CP221127 |
| Coil resistance | 290 Ohm |
| Switch function | SPDT |
| Contact composition | 1 NC + 1 NO |
| Dielectric strength | 2200 V AC between coil and contact 2200 V AC between poles 1500 V AC between open contacts |
| Associated fuse rating | 50 A gG at 690 V coordination type 2 for power circuit |
| Ambient air temperature for storage | -67...212 °F (-55...100 °C) |
| Ambient air temperature for operation | -67...131 °F (-55...55 °C) |
MPN
199X-3
